Height: 10 mm
Linearity: ± 0.25%
Materials: Stainless Steel
Force Type: Compression
Hysteresis: ± 0.20%
Cable Length: 5 ft
Overload, Max: 300% FS
Repeatability: ± 0.10%
Safe Overload: 150% FS

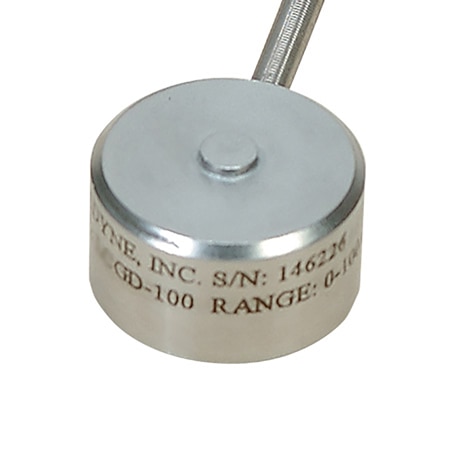

Load Cell Type: Button
Outer Diameter: 32 mm
Supply Voltage: 10 Vdc
Bridge Resistance: 350 Ω
Electrical Output: 2 mV/V
Enclosure Ratings: IP65
Calibration Option: 5 POINT NIST
Load Cell Capacity: 2000 N
Zero/Balance Error: ± 2%
5-Point Calibration: 0%, 50%, 100%, 50%, 0%
Thermal Span Effect: ± 0.018% rdg/°C
Thermal Zero Effect: ± 0.009% FSO/°C
Electrical Connection: Cable
Full Scale Deflection: 0.003 in
Wiring/Connector Table: Red: (+) Excitation; Black: (-) Excitation; Green: (-) Output; White: (+) Output
Process Temperature, Max: 71 °C
Process Temperature, Min: 16 °C
Operating Temperature, Max: 121 °C
Operating Temperature, Min: -54 °C
