CMRR: 120 dB min @ 60 Hz
NMRR: 80 dB min @ 60 Hz
Width: 95 mm
Height: 73 mm
Length: 51 mm
Weight: 455 g
Bandwidth: 3 dB down at 1.5 Hz 40 dB/decade roll-off

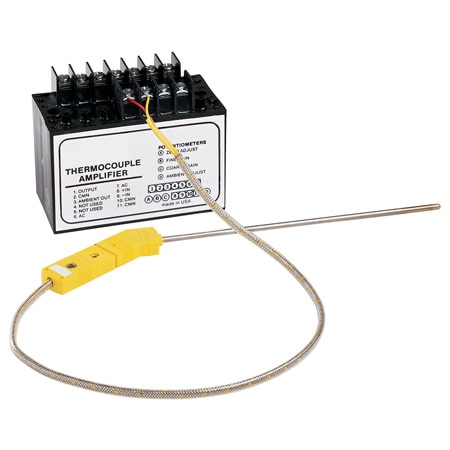

Input Type: Thermocouple (Type R, S, B)
Protection: Output Protection: Continuous short circuit proof, Input Protection: Up to 115 Vac or Vdc common mode or differential Output Port
Resolution: Infinite
Input Noise: 0 to 1.5 Hz: 1.4 µVRMS (RTI)
Input Range: 40 to 1500
Sensitivity: 1 mV/°F
Supply Power: 115 Vac @ 3 VA max
Non-Linearity: ± 0.005 %
Output Signal: Voltage
Impedance Input: 2 MΩ
Electrical Output: ± 10 V into 10 kΩ min
Supply Power Type: AC
Common Mode Voltage: +10 to -10 Vdc or 20 Volts peak-to-peak ac
Long Term Stability: Zero: ± 1µV/Month;Span: ± 0.05%; Stability of zero point - 2 µV/°C , Span stability - ± 0.01%/°C
Additional Features 1: Downscale burnout
Programmable Functions: Trim Pot
Storage Temperature, Max: 80 °C
Storage Temperature, Min: -20 °C
Cold Junction Compensation: ± 0.045°C/°C
Operating Temperature, Max: 55 °C
Operating Temperature, Min: 0 °C
Thermocouple Break Protection: Downscale
