OMEGA PHE-5316-10-PT100 Preamplified Alpha® pH Electrodes (pH, 80 °C, 0 to 13 pH) | EMINKH.COM

Water Quality Sensors
OMEGA PHE-5316-10-PT100 Preamplified Alpha® pH Electrodes (pH, 80 °C, 0 to 13 pH)

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

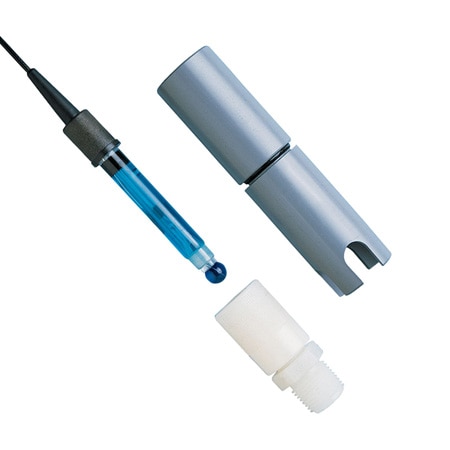

Product image

OMEGA PHE-5316-10-PT100 Preamplified Alpha® pH Electrodes (pH, 80 °C, 0 to 13 pH)

ManufacturerOMEGA(View more products from this manufacturer)

ModelPHE-5316-10-PT100

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Height: 25 mm

Length: 168 mm

Diameter: 0 mm

Impedance: 10 kΩ

Unity Gain: 1

Sensor Type: Industrial in-line combination

Battery life: up to 1 yr

Cable Length: 10 ft

Output Detail: 0 pH = +414.1 mV 14 pH = -414.1 mV @ 25°C (77°F)

Supply Voltage: ±1.5 to ±9 Vdc

Insertion Length: 1 in

Measurement Type: pH

Construction Type: 100 Ω Platinum RTD ATC

Electrical Output: ± 414.1 mV

Enclosure Ratings: General purpose

Enclosure Material: CPVC

PH Measurement Range: 0 to 13 pH

Electrical Connection: N/A

Process Connection Size: 3/4 in

Process Connection Type: NPT Male

Temperature Sensor Type: N/A

Process Temperature, Max: 80 °C

Process Temperature, Min: -5 °C
