Shock: IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day
Accuracy: Class A
Vibration: IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute;10 sweep cycles; acceleration 5g (15 probes tested together) Duration: 1 day
Insulation: PFA

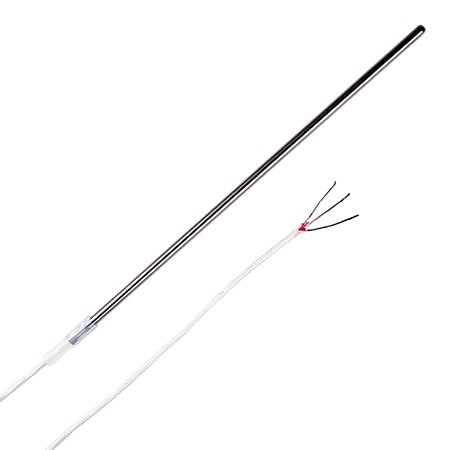

Probe Type: RTD Probe with Insulated Wire and Shrink Tube Support
Wire Gauge: 26 AWG
Cable Length: 40 in
Probe Length: 4 in
Accuracy Note: Class A from -100 to 450°C (-148 to 842°F); or else Class B
Probe Diameter: 0.125 in
Number of Wires: 4
Sheath Material: 316 Stainless Steel
Enclosure Ratings: IP67
Nominal Resistance: 100 Ω
Response Time, Max: 2.4 sec
Electrical Connection: Stripped Leads
Temperature Coefficient: 0.00385Ω/Ω/°C
Temperature Probe Style: Immersion Probe
Temperature Sensor Type: RTD
Process Temperature, Max: 250 °C
Process Temperature, Min: -50 °C
Temperature Coefficient Note: α=0.00385Ω/Ω/°C
Nominal Resistance/Curve Note: 100 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard
Wire Termination Temperature, Max: 250 °C
