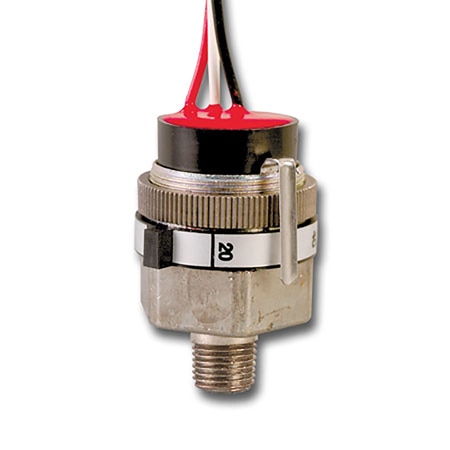

Switch: Single
Weight: 2 oz
Cycling: < 20 cycles/min
Deadband: 1.5 to 3.5 psi
Diameter: 1.1 in
Materials: Zinc Alloy
Insulation: PVC
Wire Gauge: 20 AWG
Lead Length: 12 in
Output Note: 1 A Gold-Plated Contacts for TTL or Dry Contacts
Switch Type: SPST
Output Value: 1A @ 115 Vac
Deadband Type: Adjustable
Pressure Type: Gauge
Pressure, Max: 100 psi
Pressure, Min: 3 psi
Switch Rating: 1A @ 115 Vac
Control Output: SPST Relay
Proof Pressure: 150% Full Scale
Materials, Wetted: 17-4 Stainless Steel, Methacrylate Ester, Zinc-Aluminum Alloy with Chromate Finish
System Pressure, Max: 100 psi
Electrical Connection: Pigtail Leads
Setpoint Repeatability: ± 2%
Wiring/Connector Table: Red = N/C, White = N/O, Black = Common
Process Connection Size: 1/8 in
Process Connection Type: NPT Male
Process Temperature Note: -55 to 105°C (-65 to 221°F); 2% setpoint shift can occur below -23°C (-10°F) or above 52°C (125°F)
Process Temperature, Max: 105 °C
Process Temperature, Min: -55 °C
Setpoint Repeatability Note: ± 2% of maximum system pressure
