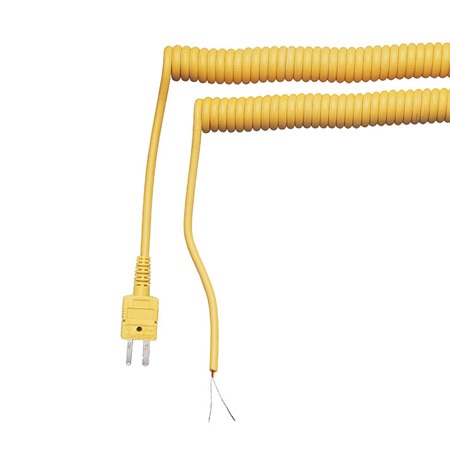

OMEGA RSCM-K-2-2-2 Retractable Cable, 2 wire, Thermocouples, RTDs, Thermistors (Standard Male Thermocouple Connector, Standard Male Thermocouple Connector, Thermocouple Type K, Thermocouple Type K, TPE)
Manufacturer: OMEGA Model: RSCM-K-2-2-2 - Contact
Wire Type: 7 x 36 Stranded
Cable Type: Insulated Coiled
Insulation: TPE
Wire Gauge: 28 AWG
Connector A: Standard Male Thermocouple Connector
Connector B: Standard Male Thermocouple Connector
Cable Length: 10 ft
Cable Diameter: 0.135 in
Cable Resistance: 27.5 Ω
Insulation Color: Yellow, Red
Tolerance Length: ± 10%
Overbraiding Type: None
Alloy Material (+): Chromel
Alloy Material (-): Alumel
Color Code Standard: ANSI
Additional Features 1: None
Retracted Coil Length: 2 ft
Temperature Sensor Type: Thermocouple Type K
Operating Temperature, Max: 105 °C
Operating Temperature, Min: -30 °C
