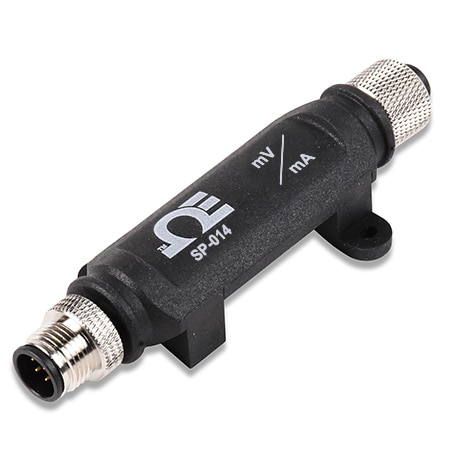

OMEGA SP-014-1 Omega Link M12 Modular Smart Probe Analog Process interface with I/O (Process Current and Voltage)

Name: OMEGA SP-014-1 Omega Link M12 Modular Smart Probe Analog Process interface with I/O (Process Current and Voltage)
Brand: OMEGA

ModelSP-014-1

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Width: 22.1 mm

Length: 96.7 mm

Software: Compatible with OEG, SYNC, and OMEGA Cloud

Approvals: CE, UKCA

Input Note: ON: 1.0 Vdc, OFF: 0.7 Vdc, Internal Pull Up/Down: 1.5k to 3.0 Vdc, Comparator (Pulse) Input: 100 mV, 500 mV, 1.0 Vdc, 2.0 Vdc

Configuration: Configurable via Omega Link Smart Interface and SYNC configuration software

Digital Input: VinHighThreshold = 2.2 VMAX, VinLowThreshold = 0.3 VMIN, VinMAX = 30 VDC

Number of I/O: 2

Digital Output: 2x Open Drain 100 mA max, VMAX = 30 VDC

Supply Voltage: 2.8 to 3.3 Vdc

Measurement Type: Process Current and Voltage

Enclosure Ratings: IP67

Supply Power Type: DC

Number of Channels: 3

Input Control Signal: Current Loop: 4 to 20 mA, Voltage: 0 to 1.0 Vdc, 0 to 2.0 Vdc

Operating Temperature, Max: 85 °C

Operating Temperature, Min: -40 °C

Datasheet
