Wire Gauge: 24 to 6 AWG
Cover Width: 2.2 mm
Amperage, Max: 0 A
Color Options: Green/Yellow
Terminal Width: 10.2 mm
Voltage Rating: N/A
Wire Size, Max: 10 mm²
Load Current, Max: 65 A
Cross-Section Area: 16 mm²
V/A/AWG Compliance: Amperage, Max (IEC 60 947-7-1)=65 A;Wire Gauge (IEC 60 947-7-1)=24 to 6 AWG;Wire Gauge (UL-cUL Ratings)=16 to 6 AWG;Wire Gauge (EN 50 AWG 0 AWG191)=16 to 6 AWG
Contamination Class: 3
Number of Terminals: 2
Rated Surge Voltage: 8 kV

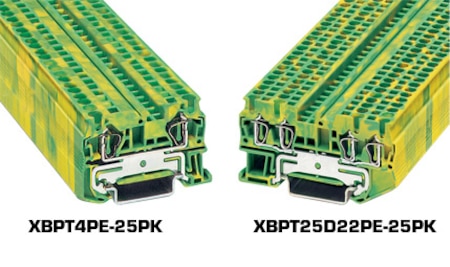

Additional Features 1: Grounding terminal block
Compatible Wiring Note: Stranded Ferrule with Plastic Sleeve=0.25 - 10 mm²;Stranded with Ferrule=None;Stranded with Ferrule without Plastic Sleeve=0.25 - 6 mm²;Stranded with Twin Ferrule with Plastic Sleeve=1.5 - 2.5 mm²
Insulation Strip Length: 18 mm
