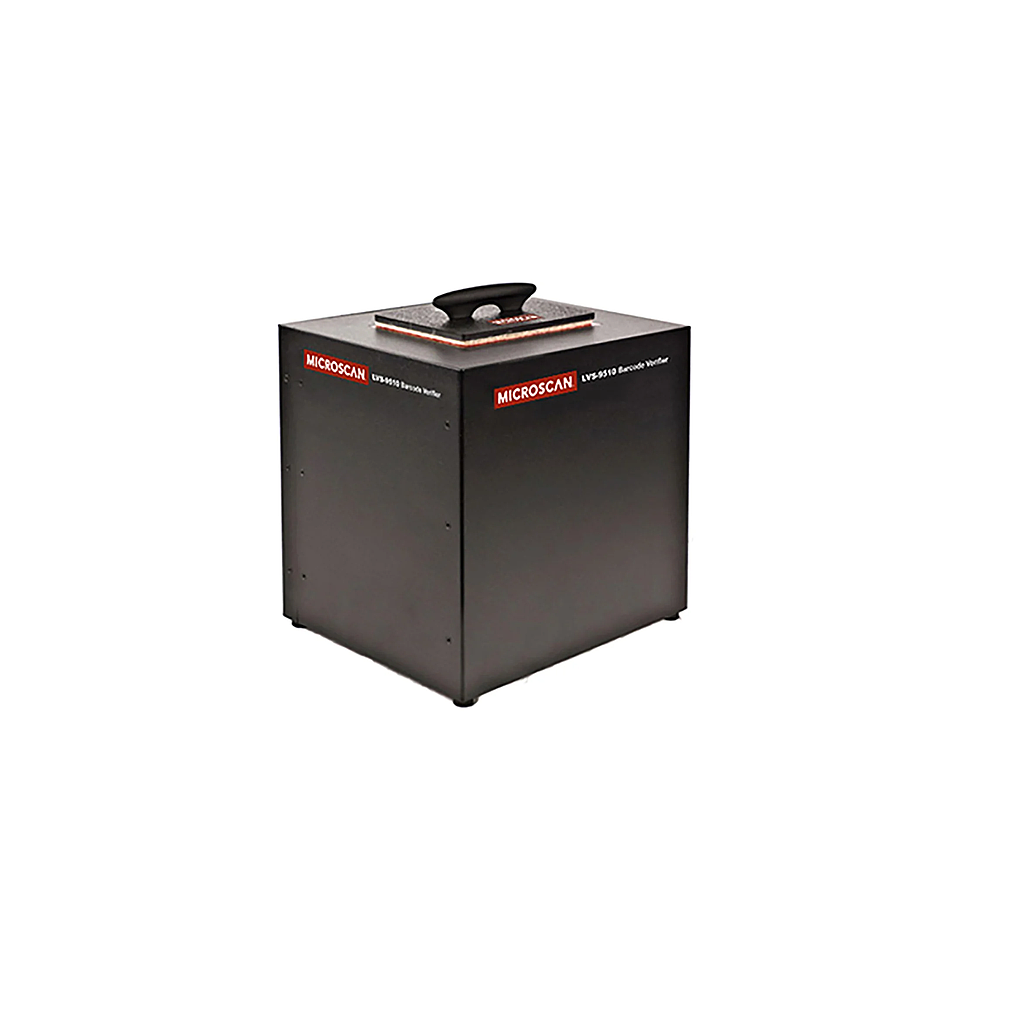

OMRON LVS -9510 Desktop Barcode Verification System

Height: 266.7 mm (10.5”)

(Includes rubber feet on system base.)

Width: 282 mm (11.125”)

Depth: 230 mm (9.062”)

Viewing Window: 127 mm x 177.79 mm (5" x 7")

Weight (Approx.):

Unpackaged standalone weight: 2.72 kg (6.0 lbs.)

Shipping weight (includes all items packaged in shipping box, such as power supply and cables): 5.89 kg (13.0 lbs.)

Top Cover Dimensions: 139.7 mm x 190.5 mm (5.5" x 7.5")

Top Cover Weight: 155.92 g (5.5 oz.)

MINIMUM PC REQUIREMENTS

PC supplied by customer. Windows® 7 Professional, Windows® 8.1 Pro, or Windows® 10 Pro; Intel®Core™ i3 or higher; 4 GB RAM; 800 x 600 Screen Resolution; One USB 2.0 port available per unit.

ILLUMINATION

Type: White LEDs; Red filter (660nm)

Optional clear window available for purchase.

ELECTRICAL

Power Input: 12 VDC @ max. 2.5 A

COMMUNICATIONS

USB 2.0 A plug to B plug cable 1.8 m (6 ft.)

CAMERA: Monochrome 5.0 megapixel

ENVIRONMENTAL

Operating Temperature: 10° to 30° C (50° to 86° F)

Storage Temperature: 0° to 40° C (32° to 104° F)

Relative Humidity, Operating: 20% to 80% (non-condensing); Relative Humidity,

Storage: 20% to 95% (non-condensing)

FIELD OF VIEW

Minimum X Dimension (Nominal):

1D: 7.0 mil (0.18 mm)

2D: 9.8 mil (0.25 mm)

Field of View (Approximate: 4.5 inches (114 mm)
