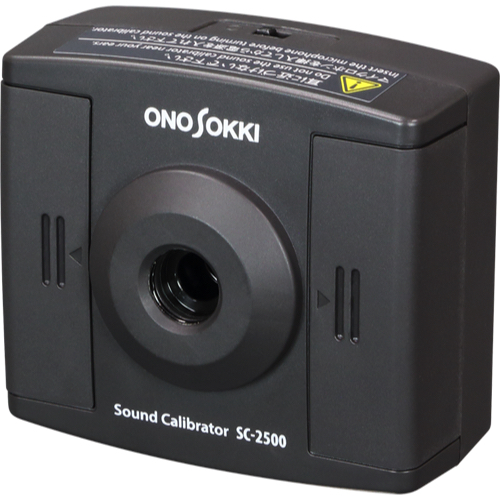

Onosokki SC-2500A Sound Calibrator (114 dB ±0.25 dB)

Applicable Standards: IEC 60942:2017 Class 1 | JIS C 1515:2020 Class 1 | ANSI S1.40-2006 (R2011) Class 1

Method: Dynamic speaker

Applicable Microphones: 1/2" Microphones | 1/4" Microphone MI-1531* *SC-0313 adapter attached to MI-3140 1/4-inch preamplifier is required.

Sound Pressure Level: 114 dB ±0.25 dB

Frequency: 1000 Hz ±0.5 %

Operating Temperature Range: -10 to 50 ℃

Operating Humidity Range: 25 to 90 % RH

Power: Type AA battery (LR6 or HR6) × 2

Battery Life: 4 hours or more continuous operation (when using LR6)

Dimensions: 84 (W) × 53 (H) × 76 (D) mm

Weight: Approximately 200 g (Not including batteries)

Accessories: Instruction manual × 1, Type AA battery (LR6) x 2
