Technology: Si
Unit Weight: 1.820 mg
Channel Mode: Enhancement
Configuration: Single

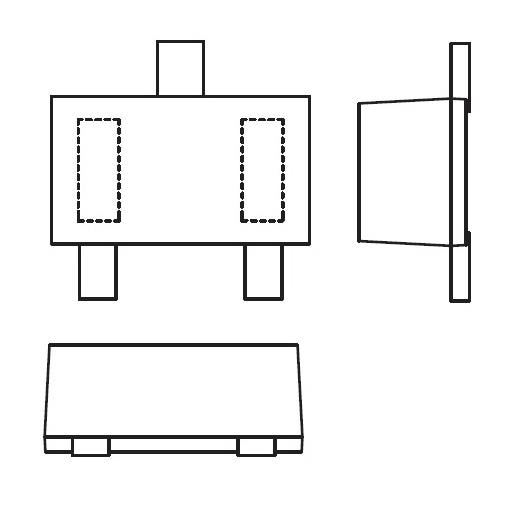

Mounting Style: SMD/SMT
Transistor Type: 1 N-Channel
Qg - Gate Charge: 1.58 nC
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Pd - Power Dissipation: 150 mW
Vgs - Gate-Source Voltage: - 10 V, + 10 V
Id - Continuous Drain Current: 150 mA
Maximum Operating Temperature: + 150 C
Minimum Operating Temperature: - 55 C
Rds On - Drain-Source Resistance: 3.7 Ohms
Vds - Drain-Source Breakdown Voltage: 30 V
Vgs th - Gate-Source Threshold Voltage: 1.3 V
