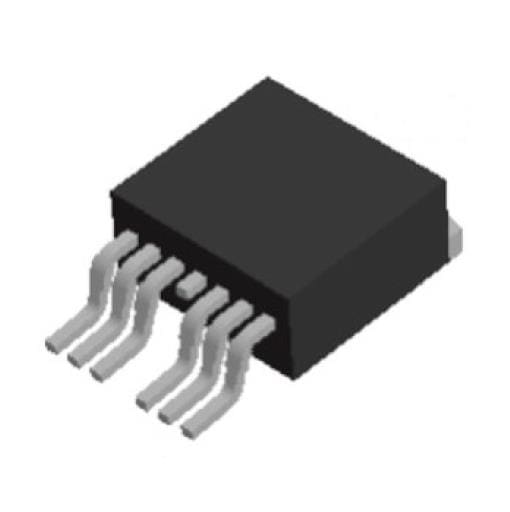

onsemi NTBGS4D1N15MC MOSFETs Power MOSFET, 150 V, 4.1 mohm, 185A, Single N-Channel, D2PAK7

Name: onsemi NTBGS4D1N15MC MOSFETs Power MOSFET, 150 V, 4.1 mohm, 185A, Single N-Channel, D2PAK7
Brand: onsemi

ModelNTBGS4D1N15MC

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Fall Time: 10 ns

Rise Time: 38 ns

Technology: Si

Unit Weight: 4.675 g

Channel Mode: Enhancement

REACH - SVHC: Details

Configuration: Single

Mounting Style: SMD/SMT

Transistor Type: 1 N-Channel

Qg - Gate Charge: 88.9 nC

Number of Channels: 1 Channel

Transistor Polarity: N-Channel

Pd - Power Dissipation: 316 W

Vgs - Gate-Source Voltage: - 20 V, + 20 V

Typical Turn-On Delay Time: 49 ns

Typical Turn-Off Delay Time: 64 ns

Id - Continuous Drain Current: 185 A

Maximum Operating Temperature: + 175 C

Minimum Operating Temperature: - 55 C

Forward Transconductance - Min: 10.9 S

Rds On - Drain-Source Resistance: 4.1 mOhms

Vds - Drain-Source Breakdown Voltage: 150 V

Vgs th - Gate-Source Threshold Voltage: 4.5 V
