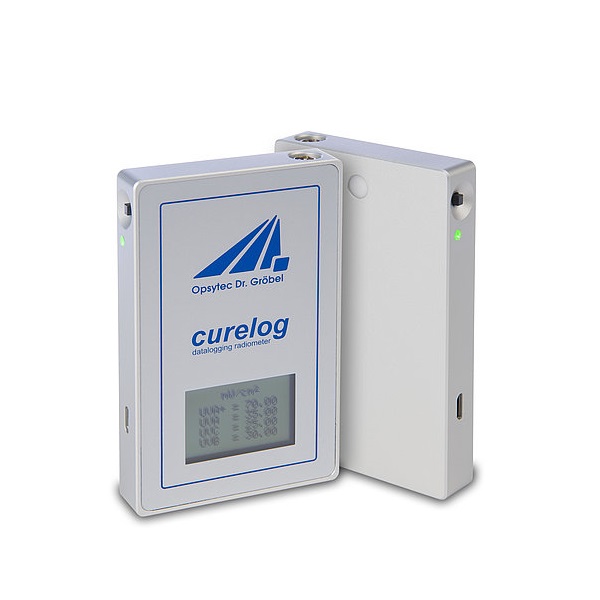

CURELOG ONE
Spectral ranges: UVB
Application: e.g. UV disinfection
Irradiance meas. range: 0.0001 - 25000 mW/cm²
Dose range: 0.0001 mJ/cm² - 6 MJ/cm²
Resolution: 0.0001 mWcm² / mJ/cm²
Calibration
traceable to PTB / NIST
optional ISO 17025
Sampling rate: 1 Hz to 2000 Hz, adjustable
Recording time: 180 h to 5 min, depending on the time resolution
Memory: 64 MBit
AD conversion: 24 bit precision ADC
Display: graphical, 128 x 64 px
Dimensions: 62,5 x 100 x 14 mm³
Sensor position: backside
Weight: ~ 125 g
Cosine correction: yes
Operation temperature: 70 °C briefly for up to 60s at 120°C ambient temperature
Power supply: internal Li-Ion battery
Measuring duration: 30 h on one battery charge
PC interface: USB
System requirements: Windows 10, 30 MB HDD, 4 GB RAM
Delivery
Curelog, USB cable, power supply, manufacturers’ calibration certificate, manual, carrying case, PC software for any number of workstations
