Spectral range: 200 - 1100 nm
Versions: measurement range
Standard ~ 1 - 200 mW/cm²
Spectral resolution: 0,44 nm (pixel pitch)
Spectral bandwidth: 2,3 nm (FWHM)
Gratting: 300 l/mm, holografic
Focal length: 75 mm
Blaze wavelength: 250 nm
Detector: SI
Pixel size: 14 x 200 µm
Number of pixel: 2048
Resolution: 16 bit
Integrations time: 0,1 ms to 60 s
Max. Dynamic range: 10^5:1 with 3 measurements
Interface: USB
Trigger: rear connection
Dimensions: 177 x 125 x 45 mm
Weight: 1.2 kg
Supply voltage: 5 V, 500 mA
Power: < 3 W
Operating temperature: 5 to 40 °C
Storage temperature: -10 to 60 °C
Humidity: <80%, non-condensating
System requirements: Win 7/10, min 1 GB RAM
DELIVERY

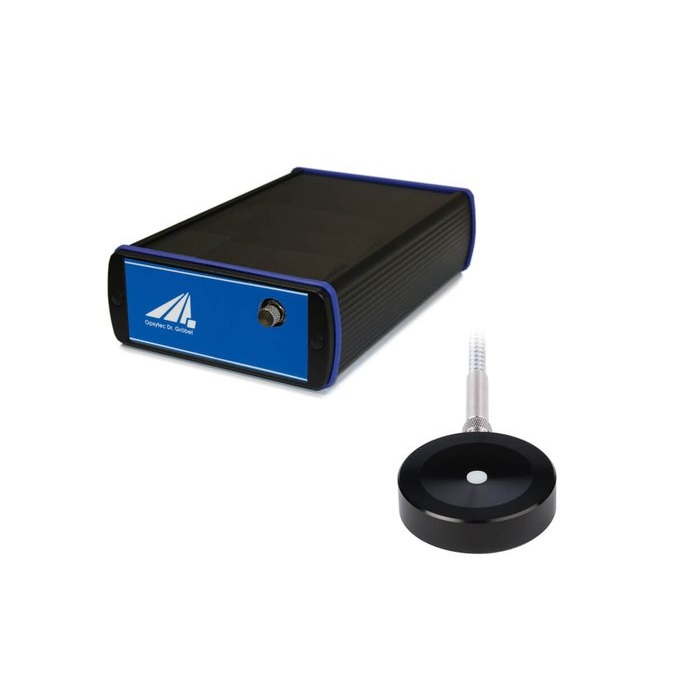

Spectroradiometer SR900, USB cable
Datasheet
Features
• Spectral range 200-1100 nm
• Nearly scatter-free grid with 300 lines/mm
• Spectral resolution 0.4 nm and 2,3 nm bandwidth
• Order filtering
• Spectral software for the color measurement, radiometric and effects-based measurements
• Simple validation by means of the user concept
• Wide range of accessories
