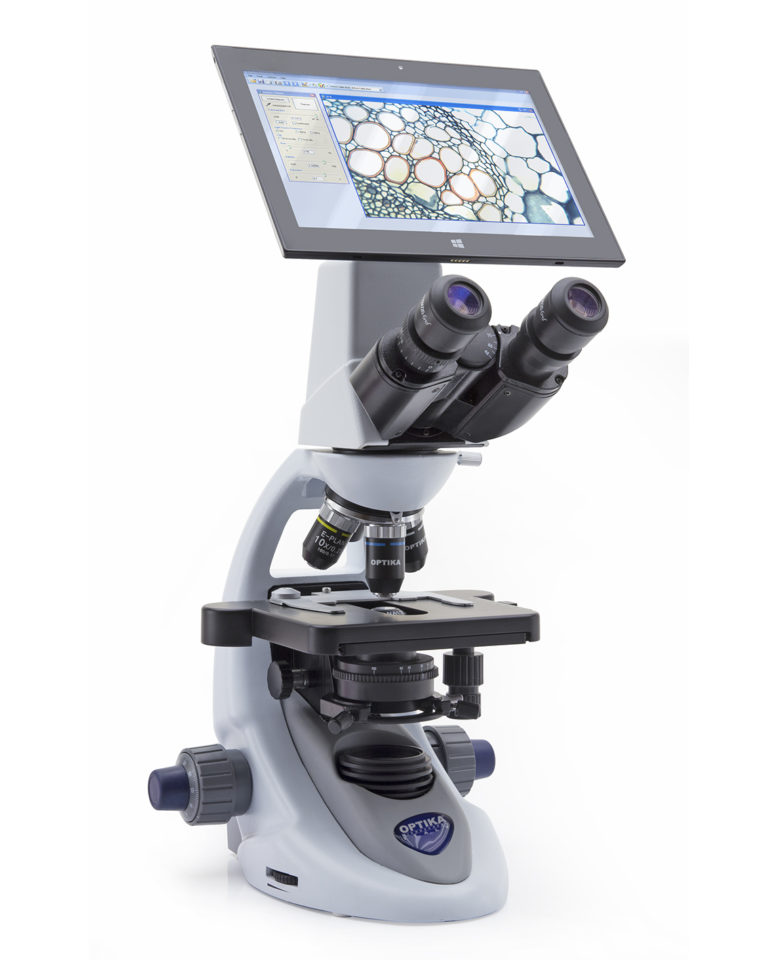

Observation mode: Brightfield.
Head: Binocular, 360° rotating and 30° inclined. Interpupillary distance from 48 to 75 mm; dioptric adjuctment on left eyepiece. Built-in 3.1 MP camera.
Dioptric adjustement: On the left eyepiece tube.
Eyepieces: WF10x/20 mm, high eye-point and secured by screw.
Nosepiece: Quadruple revolving nosepiece, rotation on ball bearings.
Objectives:
N-PLAN 4x/0.10
N-PLAN 10x/0.25
N-PLAN 40x/0.65
N-PLAN 100x/1.25 (Oil/Water)
All with anti-fungus treatment.
Specimen stage: Double layer rackless mechanical sliding stage, 150×139 mm, 75×33 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1 mm.
Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.
Condenser: Abbe N.A. 1.25, with objective-coded iris diaphragm, focusable and centerable.
Illumination (Fixed Koehler type): X-LED3 type with white 3.6 W LED (6,300 K) and light intensity control. Multi-plug 100-240Vac/6Vdc external power supply.
Camera specifications
PC Camera resolution (MP): 3,1
Camera resolution (n° of pixels: W x H): 2048x1536
USB Signal output: USB 2.0
Color / Monochrome: Color
Sensor Size: 1/2.5"
Sensor Technology: CMOS
Sensor Type : APTINA CMOS
Rolling Shutter: Yes
Image Format: 4/3
Pixel Size (mm): 2.2x2.2
Frame rate full resolution (fps): 8@1280x1024
Frame rate other resolution (fps): 30@640x480
Sensitivity: 0.53 V/lux-second
Signal/Noise Ratio (DB): 40.5
Dynamic range (DB): 66.5
ADC conversion: 12 Bit
Color Depth: 8 Bit
Exposure time: … - 1.5 sec
Binning: 1x1
IR filter: Yes
IR filter range (nm): 680
Camera Power: PC USB
C-Mount: Yes
Tablet
Operating system: Windows 10 (64Bit)
CPU: Gemini-Lake, N4100
CPU speed: 1.10 GHz
Graphic card: Intel® HD Graphics 600
RAM: Ram 6 GB LPDDR3
Display size: LED 10.1” IPS Multi Touch Screen
Display resolution:1920x1200
Storage: Hdd 128 GB
Network: WiFi (2.4G / 5G) - Bluetooth 5.0
Input ports: USB-C (1 USB2.0 for battery charge, 1 USB3.0) - Micro SD card reader
Output ports: Microphone - Headphone - Micro HDMI
Battery Type: Lithium-ion
Battery capacity: 6500 mAh
Power consumption: 24.05W
Power supply: 12V 2A EU
Dimensions (mm): 261 x 167 X 9
Weight (Kg): 0.53
Language: Multilanguage
