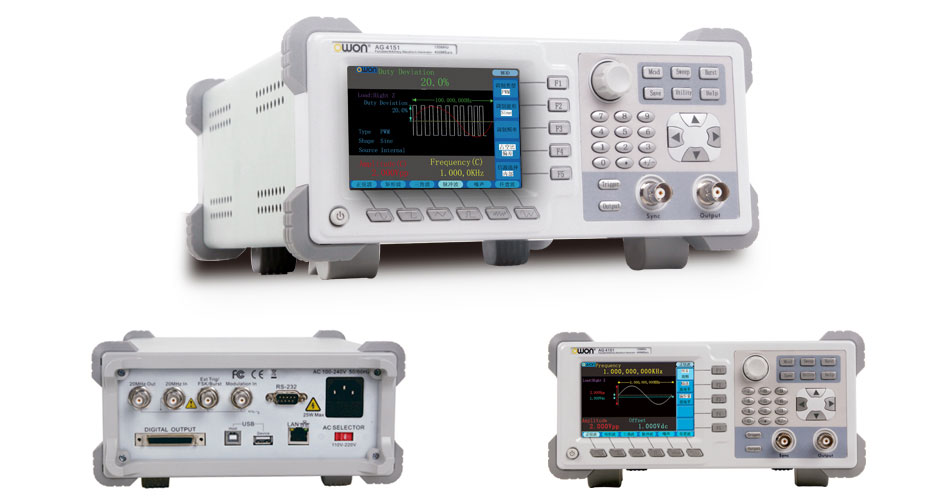

| Model | AG1022 | |
|---|---|---|
| Bandwidth | two channels 25MHZ | |
| Sample Rate | 125MSa/s | |
| Vertical Resolution | 14bits | |
| Standard waveforms | Sine, Square, Pulse, Ramp, Noise | |
| Arbitrary waveforms | Sinc,Exponential Rise and Decay, DC, User defined | |
| Frequency Characteristics | ||
| Sine | 1 μHz—25MHz | |
| Square | 1 μHz—5MHz | |
| Pulse | 1 μHz—5MHz | |
| Ramp | 1 μHz—1MHz | |
| Arb | 1 μHz—10MHz | |
| Arbitrary waveforms | ||
| Wavelength | 2 to 8Kpts | |
| Sample Rate | 125MSa/s | |
| Vertical Resolution | 14bits | |
| Non-Volatile Memory | 4 waveforms | |
| Amplitude characteristics | ||
| Amplitude | 10mVPP-10VPP(50Ω) 20mVPP-20VPP(High Impedance) | |
| Resolution | 1mVPP or 14bits | |
| DC Offset Range （AD+DC） | ±5V(50Ω)、±10V(High Impedance) | |
| DC Offset Range Resolution | 1mV | |
| Load Impedance | 50Ω(typical) | |
| Modulation Characteristics | ||
| Modulation Waveforms | / | |
| Modulation Frequency | / | |
| Input / Output | ||
| Display | 3.9-inch(480×320) TFT LCD | |
| Type | external reference clock input/output | |
| Interface | USB Host,USB Device,RS232 | |
| Mechanical | ||
| Dimensions(W×H×D) | 235×110×295(mm) | |
| Weight(without package) | 3KG | |
