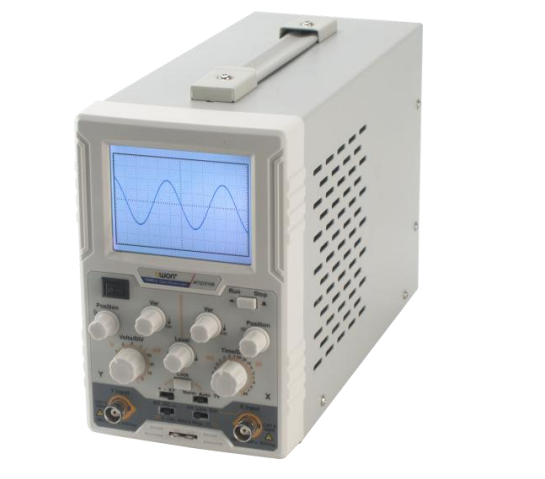

Manufacturer: OWON
Model: AS201
Origin: China
Warranty: 12 months
- Bandwidth DC: DC:0~20MHz, AC: 10 Hz~20MHz
- Channel 1
- Horizontal system
Sample Rate 100MS/s
Interpolation (Sinx)/x
Scanning speed
(S/DIV) 0.05us/DIV ~ 0.1s/DIV,step by 1 – 2 - 5
relay time accuracy ±100 ppm
Trimming Ratio ≧2.5:1
- Vertical system
Sensitivity 5 mV/DIV～10 V/DIV
Displacement ±10DIV
Analog bandwidth 10 MHz
Low Frequency ≥10 Hz (at input, AC coupling, -3 dB)
Rise time (at input, Typical)
≤ 30 ns
Trimming Ratio ≧2.5:1
- Input coupling DC, AC , Ground
- Input impedance 1 MΩ±2%, in parallel with 20 pF±5 pF
- Max. input voltage 400V (DC+AC, PK - PK)
- X-Y Model
Sensitivity X:0.5V/DIV Y:0.1V/DIV ~ 1V/DIV
Bandwidth(-3dB) DC: 0 ~ 1MHz AC: 10Hz ~ 1MHz
- Trigger
Trigger level range ±4 DIV from the screen center
Trigger level Accuracy (typical) ±0.3 DIV
Trigger Sources Int, Line, Ext
Trigger Mode Norm, AUTO, TV
Edge trigger Rising, Falling
Video Trigger Support standard NTSC, PAL and SECAM broadcast systems
Sample Rate / Relay Time ±100ppm
Trigger lock support
Ext. Trigger Input Impedance 1 MΩ±2%, in parallel with 20 pF±5 pF
Ext. Trigger Max. Input Voltage 400Vpp
- Trigger Output of the probe compensator
Output Voltage (Typical) Square, 0.5Vpp±2%
Frequency (Typical) Square wave of 1 kHz(±1%)
Display 3.7" Colored LCD (Liquid Crystal Display)
Power Supply 100V - 240V AC, 50/60Hz, CAT II
Power Consumption ＜15W
Fuse 1A, T class, 250V
Dimension (W x H x D) 117 x 192 x 288 mm
Device Weight About 1.8 kg
Accessory
Power Cord, Manual, Probe, Probe Adjust
