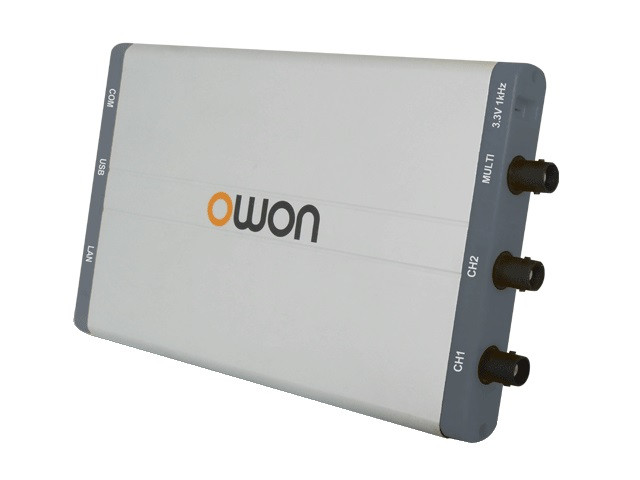

OWON VDS1022 USB Oscilloscope (25Mhz, 2CH, 100Ms/s)

Name: OWON VDS1022 USB Oscilloscope (25Mhz, 2CH, 100Ms/s)
Brand: OWON
Availability: OutOfStock

ManufacturerOWON(View more products from this manufacturer)

ModelVDS1022

OriginChina

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Model		VDS1022	VDS1022	VDS2062	VDS3102	VDS3104
Bandwidth		25MHz		60MHZ	100MHZ
Channel		2+1 (multi )				4+1 (multi)
Sample Rate		100MS/s		500MSa/s	1GSa/s
Horizontal Scale (s/div)		5ns/div～100s/div, step by 1～2～5			2ns/div~100s/div, step by 1～2～5
Rise Time		≤14ns		≤5.8 ns	≤3.5 ns
Record Length		5K		10M
Input Coupling		DC AC GND
Input Impedance		1MΩ±2%，in parallel with10pF±5pF
Channels Isolation		50Hz : 100 : 1, 10MHz : 40 : 1
Max Input Voltage		400V (PK - PK) (DC+AC, PK - PK)	40V (PK - PK) (DC+AC, PK - PK)
DC Gain Accuracy		±3%
DC Accuracy		Average≥16: ±(3% reading + 0.05div) for △T
Probe Attenuation Factor		1X, 10X, 100X, 1000X
LF Respond (AC, -3dB)		≥5Hz (at input, AC coupling, -3dB)
Sampling Rate / Relay Time Accuracy		150ps
Interpolation		sin(x) / x
Interval (△T) Accuracy (full bandwidth)		Single: ± (1 interval time + 100ppm × reading + 0.6ns), Average >16: ±(1 interval time + 100ppm × reading + 0.4ns)
Vertical Resolution (A/D)		8 bits resolution (2 channels simultaneously)
Vertical Sensitivity		5mV/div～5V/div
Trigger Type		Edge, Pulse, Video, Slope, Alternate
Trigger Mode		Auto, Normal, Single
Trigger Level		±5 divisions from screen center
Acquisition Mode		Sample, Peak Detect, and Average
Line / Field Frequency (video)		NTSC, PAL, and SECAM standard
Cursor Measurement		△V, and △T between cursors
Automatic Measurement		Vpp, Vavg, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Overshoot, Preshoot, Rise Time, Fall Time, Delay A→B↑, Delay A→B↓, +Width, -Width, +Duty, -Duty
Waveform Math		＋, －, ×, ÷, FFT
Lissajou’s Figure	Bandwidth	full bandwidth
	Phase Difference	±3 degrees
Communication Interface		USB 1.1		USB 2.0, LAN (optional)
Multi-function Interface	Signal Type	synchronized input / output, Pass / Fail , external trigger input
	Level Standard	TTL
Power Supply		5.0V/1A
Power Consumption		≤1.5W		≤5W
Dimensions (W × H × D)		170 × 120 × 18 (mm)		190 × 120 × 18 (mm)
Weight (without package)		About 0.26 kg				About 0.30 kg
