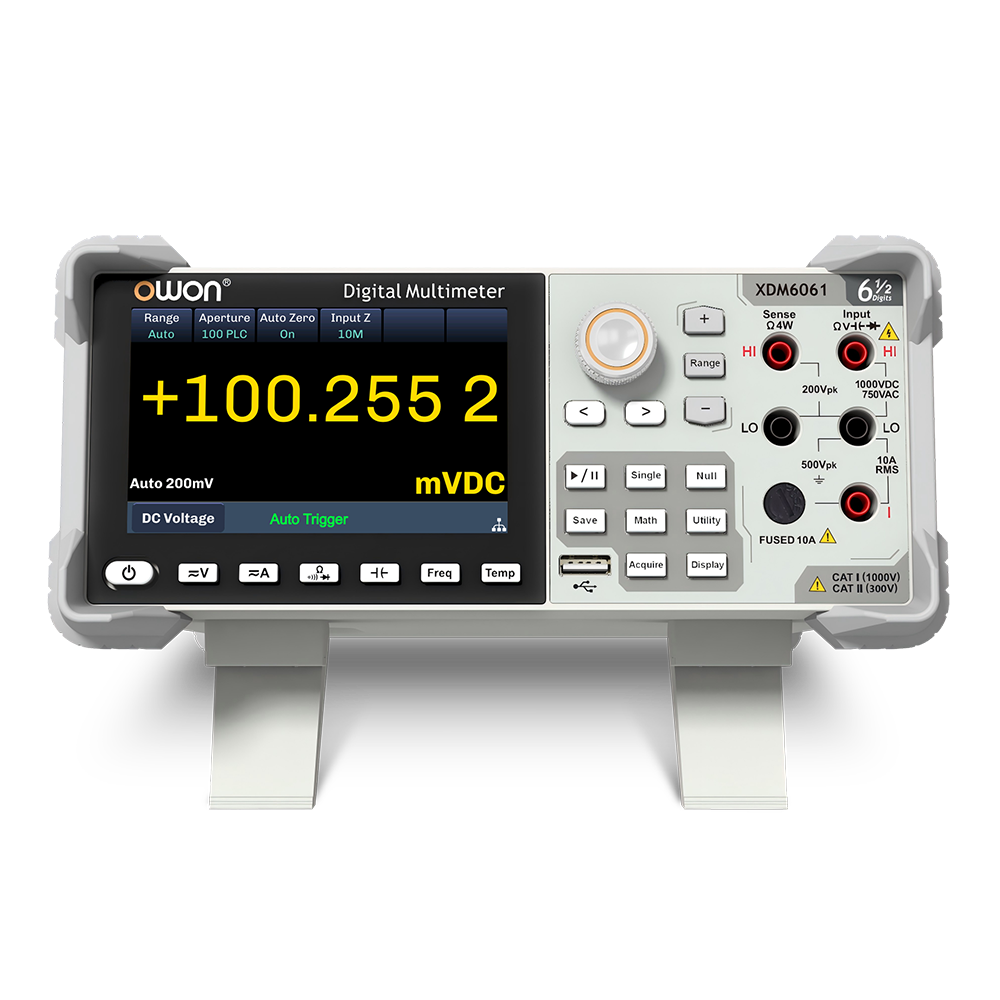

OWON XDM6061 Data Record Bench Multimeter (1000VDC, 750VAC, 10ADC/AC, True RMS)

Function:

DC Voltage:

Range: 200.000mV – 1000.000V

Best Accuracy: 0.0035±0.0006

Temperature Coefficient: 0.0005+0.0001

AC Voltage (True RMS):

Range: 200.0000mV - 750.0000V

Best Accuracy: 0.06+0.04

Temperature Coefficient: 0.005+ 0.004

DC Current:

Range: 200.0000µA - 10.00000A

Best Accuracy: 0.050+0.003

Temperature Coefficient: 0.0020+0.0005

AC Current (True RMS):

Range: 200.0000µA - 10.00000A

Best Accuracy: 0.10+0.04

Temperature Coefficient: 0.015+ 0.006

Resistance:

Range: 200.0000Ω - 100.0000MΩ

Best Accuracy: 0.010+0.001

Temperature Coefficient: 0.0006+0.0001

Diode Test:

Range: 0 - 5V

Best Accuracy: 0.010+0.020

Temperature Coefficient: 0.0010+0.0020

Continuity Test:

Range: 2000.0 Ω

Best Accuracy: 0.010+0.020

Temperature Coefficient: 0.0010+0.0020

Frequency / Period:

Range: 3Hz - 1MHz

Best Accuracy: 0.007

Temperature Coefficient: 0.001

Capacitance:

Range: 2.0000nF - 100.00mF

Best Accuracy: 1 + 0.3

Temperature Coefficient: 0.01 +0.01

Temperature:

Range: thermocouple (ITS-90 conversion between B / E / J / K / N / R / S / T type); thermal resistance (RTD sensor conversion between Pt100 and Pt385 type); 2-wire and 4-wire thermistors (5 kΩ 44007 type)

Best Accuracy: 0.16°C

Temperature Coefficient: 0.01°C

Mathematical Functions: Min, Max, Avg, Std Dev, dBm, dB, Limit, Relative, Histogram, Trend Chart, Bar Chart

Trigger: External Trigger、 VMC out

Data-logger Function:

Logging Duration: 1ms-3600s

Logging Length: 2M points (Internal memory)

General:

Dimension (W x H x D): 346mm x 260 mm x 107 mm

Weight: 3.4kg (without package)
