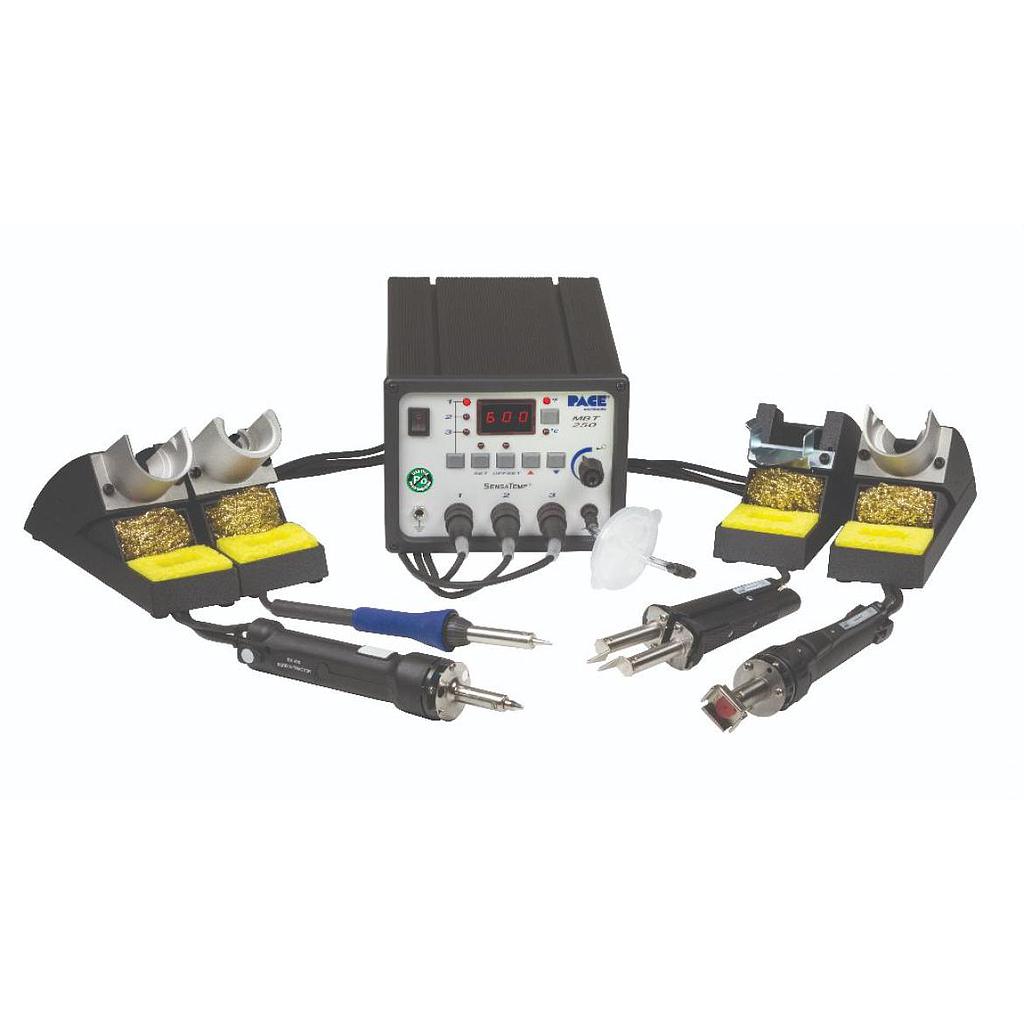

S - PS-90 Universal Soldering Iron,
D - SX-90 Sodr-X-Tractor,
T - TT-65 ThermoTweez, and the
P – TP-65 ThermoPik
Power Requirements: 230VAC, 50/60Hz, 184 Watts maximum 207 Watts maximum
Handpiece Specs: SensaTemp Only
Tip to ground resistance: 2 ohms or less
Tempersture stability: 1.1°C (° 2°F) at idle from set tip temp.
Tip Temperature Range: 38° to 482°C (100° to 900°F) nominal
Vaccuum Rise Time: Evacuates 33cc (2 cubic inch) volume to 25cmHg. (10in Hg.) in 150ms.
Pressure: .48 Bar (7 p.s.i.) nominal at maximum setting
Airflow: 9 SLPM (0.32 SCFM) maximum
