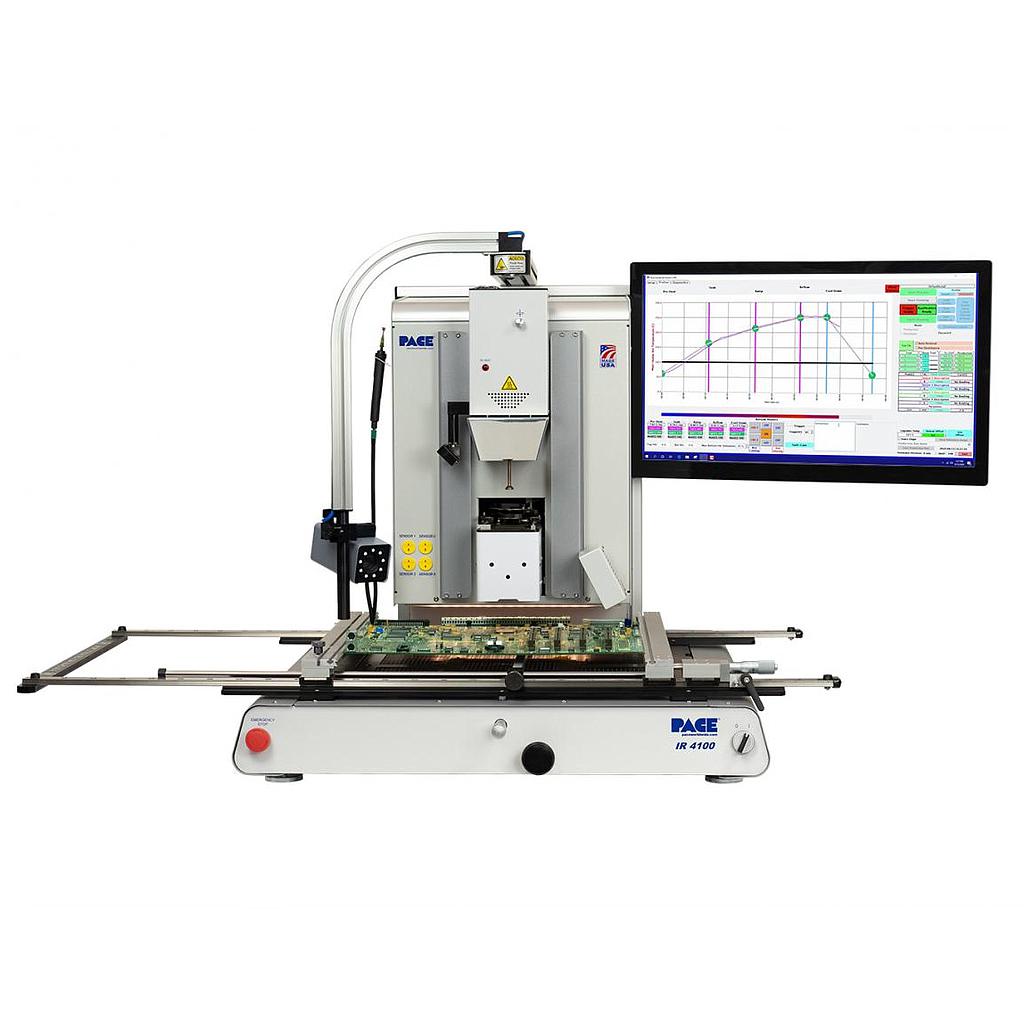

Option: Choose suitable nozzles that are compatible with components when purchasing.
Power requirement: 230 VAC, 50 Hz (2400 Watts maximum)
Dimensions: 737mm (29”) H x 1118mm (44”) W x 965mm (38”) D
Weight (Without Computer): 90kg (200lbs)
Top-side Heater: Medium/Long wave IR, 500 Watts
Bottom-side Preheater with Adjustable Working Height: Medium/Long wave IR, 1900 Watts with array of 7 IR emitters capable of preheating large, high mass assemblies; Adjustable working height from lowest position up to 38mm (1.5”) closer to the PCB
High-Sensitivity Vacuum Pick: Pick is counterweight balanced, and utilizes an optical sensor and precision high temperature linear ball bearings, ensuring delicate placement and pick up of parts from PCB. Includes seven (6) Vacuum Picks
Precision Placement Capability: Advanced professional placement system utilizing a stepper motor and position encoding provides smooth, precise movement, with no drift, allowing for repeatable and accurate placement.
Placement Accuracy: Stepper motor with precision positioning of to 28µm (.0011”) accuracy
Maximum Target Temperature: Each profile zone has a maximum target temperature of 328 °C (624 °F)
Maximum/Minimum PCB Size: Maximum: 610mm x 610mm (24” x 24”); Minimum: N/A arms close down completely
Maximum/Minimum Component Size: Maximum: 65mm (2.5”) x 65mm (2.5”); Minimum: 1mm Sq.
IR Pyrometer and Thermocouple Inputs: A specially developed IR sensor provides non-contact, real-time, closed-loop temperature control throughout the reflow process. In addition, four (4) thermocouple inputs provide additional real-time monitoring (includes 2 K-type thermocouples)
Auxiliary Cooling Fan: Standard, for secondary cooling of the PCB
Computer System: Windows 10 PC, with wireless mouse and keyboard
Video Monitor: 607mm (24”) wide screen flat panel monitor (includes Monitor Arm Mounting Kit)
Video Inputs: USB 3.0
