Fall Time: 27 ns
Rise Time: 28 ns
Technology: Si
Unit Weight: 2 g
Channel Mode: Enhancement
Configuration: Single

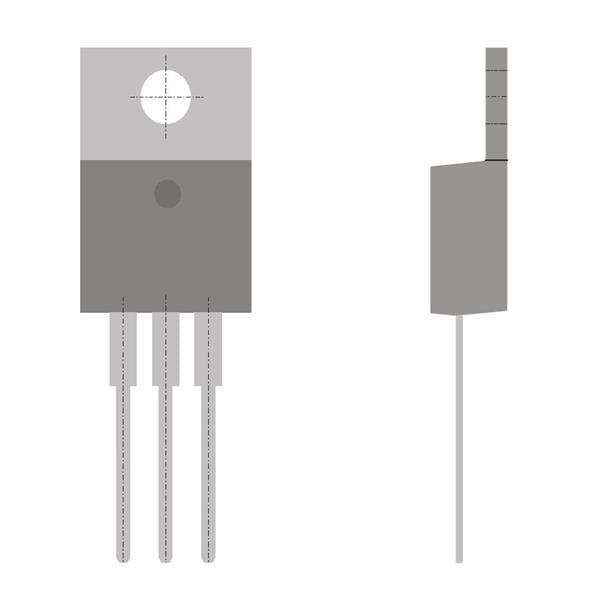

Mounting Style: Through Hole
Transistor Type: 1 N-Channel
Qg - Gate Charge: 17 nC
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Pd - Power Dissipation: 146 W
Vgs - Gate-Source Voltage: - 30 V, + 30 V
Typical Turn-On Delay Time: 12 ns
Typical Turn-Off Delay Time: 31 ns
Id - Continuous Drain Current: 5 A
Maximum Operating Temperature: + 150 C
Minimum Operating Temperature: - 55 C
Rds On - Drain-Source Resistance: 2.7 Ohms
Vds - Drain-Source Breakdown Voltage: 800 V
Vgs th - Gate-Source Threshold Voltage: 4 V
