Specifications
Measurement range with corresponding unit:
- m/s: 0.2 ... 20.0
- °C / °F: 0.0 ... 50.0 / 32 ... 122°F (sensor)
Calculation of volume of air current:
- m³/min (CCM): 0 ... 36,000
Resolution
- Air velocity: 0.1m/s (for remaining units, up to ft/min = 1.0)
- Air temperature: 0.1°C / 32.2°F
- Volume of air current (CCM): 0.001 to 1m³/min (depending on reading)
Accuracy
- Air velocity: ±1% (of measurement range) or ±5% of the corresponding value
- Air temperature: ±0.8°C / 33.4°F
- Volume of air current (CCM): Calculated value
Measuring quote:From 2 sec. to 9 hours
Internal memory:16.000 values
Interface:RS-232
Software / RS-232 cable: - Included, compatible with Windows 95, 98, 2000, XP, for data transfer
- Data can also be exported to MS Excel
Display:Large 58 x 34 mm / 2.3 x 1.4 in LCD
Operating conditions
Device: 0°C ... 40°C / 32 ... 104°F <80% r.h.
Thermal sensor: 0°C ... 50°C / 32 ... 122°F <80% r.h.
Power:4 batteries (1.5V) (or by way of an optional mains adaptor of 9V)
Auto shut-off:Yes, 5 minutes to protect battery power
Dimensions
Device: 203 x 76 x 38 mm / 8 x 3 x 1.5 in
Thermal sensor: 8 mm / .3 in diameter x 940 mm / 37 in maximum extended length (only 280 mm / 11 in when contracted)
Enclosure:ABS plastic
Weight:515 g / 1.1 lbs
Delivery contents

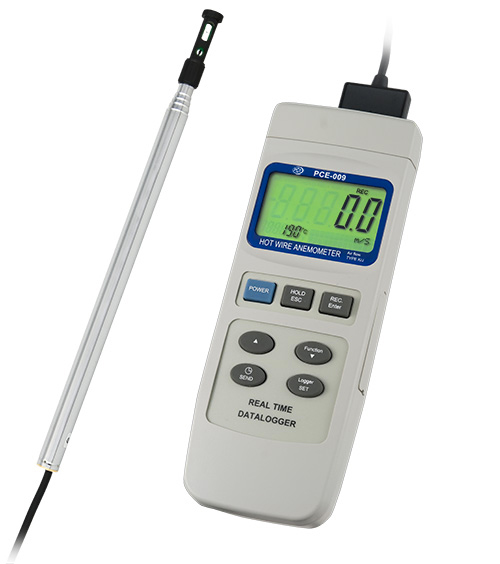

-PCE-009 Air velocity meter with thermal sensor and 1.5 m / 4.9 ft connector cable
-RS-232 cable
-Software
-4 batteries carrying case
-User's manual
