Sensors: S force cells for tensile and compressive force / Max. 3t per cell
Measuring system: maximum force 30,000 N / 3,000 kg / 3t
Measurement resolution: 1 kg / 2.2 lb
Measurement uncertainty: 0.5% of full scale
Dimensions: 1300 x 1050 x 1550 mm / 51 x 41 x 61"
Construction: 45 x 90 mm / 1.7 x 3.5" aluminum profiles
Measuring distances: The measuring distances can be individually adjusted to the large clamp.
x-axis: 320 … 1050 mm / 12.6 x 41.3" (horizontally)
y-axis: 300 … 1250 mm / 11.8 x 49.2" (vertically)
z-axis: 1000 ... 1050 mm / 39.3 x 41.3" (depth)
Measuring surface: Ø158 mm / 6.2" / self-levelling
Display:graphic touchscreen display 120 x 90 mm / 4.7 x 3.5"
multi-display
total force / force measuring point 1 / force measuring point 2 / force measuring point 3 / force measuring point 4
sum of the forces in the upper / lower / front and rear area
percentage force distribution of the measured values related to the total force
colored display for measurements outside the tolerance
Languages: German; other operator languages can be installed at the factory.
tell us which language you want.
Interface: RS232 with printer; USB as optional storage interface
Printer:thermal printer / 203 dpi / paper width 58 mm / 2.28"
Castors: 4 swivel castors / Ø100 / two of them with double brakes
Power supply: battery operation up to 45 hours / charging time: ca. 10 hours
Weight: ca. 130 kg / 286 lb
Delivery Scope:

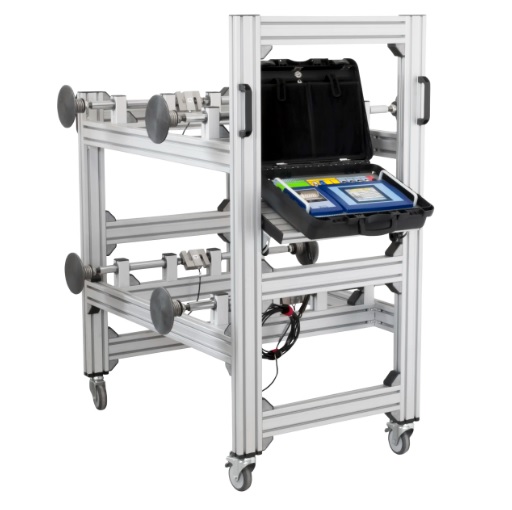

1 x Device Clamp Force Gauge PCE-4PCFM with 4 x load cells, 8 x guide shafts, 1 x mains power adapter
