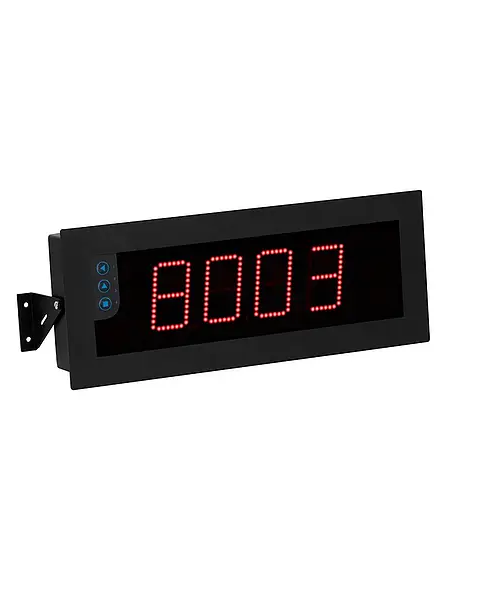

PCE BPD-U-41D Digital Universal Indicator

Function: to convert analog signal into a usable value

Input signal: 4 ... 20 mA, ±20 mA DC, 0 ... 10 V DC, ±10 V DC

Maximum input signal: 100 mA or 100 V DC

Input impedance (current measurement): 11 Ω

Input impedance (voltage measurement): 932 kΩ

Number of digits: 4

Digit height: 100 mm / 3.9"

Maximum reading distance: 50 m/164 ft

Accuracy: 0.05 % of measuring range

Measuring rate: 15 Hz

Response time for value changes from 0 to 99% of the signal: 120 ms

Display range: -1999 ... 9999

Number of outputs: 2

Power consumption: 5.25 W (without optional accessories)

Power consumption: 6.75 W (with optional accessories)

Sensor voltage supply: 20, 15, 10, 5 V DC

Sensor power supply accuracy: ±5 %

Maximum sensor supply current: 35 mA (with short-circuit protection)

Power supply: 11 ... 36 V DC

Weight: 2500 g / 88.1 oz

Further specifications

Cable cross-section for input and output signal : <0.5 mm²

Cable cross-section for supply voltage: <2.5 mm²

Display: 7 segment display

Viewing angle: 120 °

Warm-up time: 15 minutes

Dimensions: further information can be found in the instructions

Operating conditions: 0 ... 50 °C / 32 ... 122 °F, <90 % RH, non-condensing

Storage conditions: -20 ... 70 °C / -4 ... 158 °F, <90 % RH, non-condensing

Delivery Scope:

1 x Digital Universal Indicator PCE-BPD-U-41D

1 x Instruction Manual
