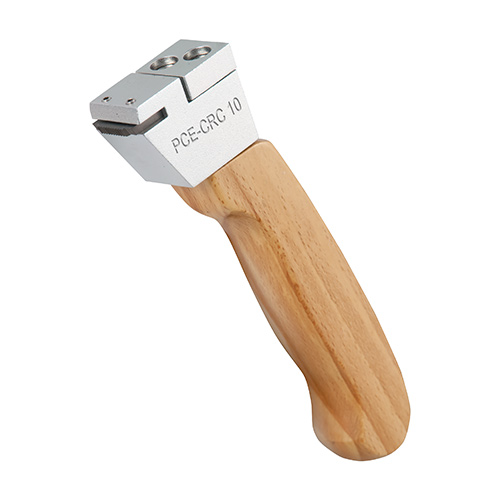

PCE CRC 10 Material Tester (0~60 µm)

Measuring range: to 60 microns thickness

Number of teeth: 6 or 11 (depending on the version)

Average distance: 1 ... 3 mm (depending on the version)

Choosing the right cross-cut method:

- Method A (X-cut) for testing to ASTM D 3359 with layer thickness> 125 µm

- Method B (crosshatch Cross) for testing to ISO 2409 with thickness 0 ... 250 µm and ASTM D 3359 with thickness <125 µm

Choosing the right cut distance (Method B): To EN DIN ISO 2409

Layer thickness SubstratumAverage distance

0...60 µm Hard 1 mm

0...60 µm Soft 2 mm

Approx. 60...120 µmHard or soft 2 mm

Approx. 120...250 µmHard or soft 3 mm

To ASTM D 3359

Layer thickness Average distance

0 ... 50 µm 1 mm

50 ... 125 µm 2 mm

Delivery Scope:

1 x Material Tester PCE-CRC 10 with selected blade

1 x Allen key for blade change

1 x Brush to remove loose particles

1 x Duct tape

1 x Transport case

1 x Instruction manual
