- Measurement on ferrous metal (Fe):
Measuring range: 0 ... 2000 µm
Resolution:
0.1 µm @ 0.0 ... 99.9 µm
1 µm @ 100 ... 2000 µm
Accuracy: ±(2 % ±2 µm of Mw.)
Repeatability: ±(1 % ±1 µm of Mw.)
Smallest radius of curvature: 1.5 mm
Smallest measuring area: Ø7 mm
Smallest layer thickness: 0.5 mm
- Measurement on non-ferrous metal (NFe):
Measuring range: 0 ... 2000 µm
Resolution:
0.1 µm @ 0.0 ... 99.9 µm
1 µm @ 100 ... 2000 µm
Accuracy: ±(2 % ±2 µm of Mw.)
Repeatability: ±(1 % ±1 µm of Mw.)
Smallest radius of curvature: 3 mm
Smallest measuring area: Ø5 mm
Smallest layer thickness: 0.3 mm
- Temperature:
Measuring range: 0 ... 50 °C / 32 ... 122 °F
Resolution: 0.1 °C / °F
Accuracy: ±1.2 °C / ±2.2°F
- Humidity:
Measuring range: 0 ... 100 % r. h.
Resolution: 0.1 % r. h.
Accuracy:
±3.2 % r. h. @ 20.0 ... 70.0 % r. h.
±4.0 % r. h. @ 0.0 ... 19.9 % r. h.
±4.0 % r. h. @ 70.1 ... 100.0 % r. h.
- Further specifications:
Base material for measurements Ferrous (Fe) and non-ferrous (NFe) metals
Display: 2.4 " LC display
Automatic display orientation: 0, 90, 180 and 270 °, can be switched off (only measuring window)
Statistic functions: average, highest, lowest and SDEV measured value
Measuring modes: direct, groups, SSPC
Units: µm, mm, mils, inch
Power supply: 2 x 1.5 V AA batteries
Interface: Micro-USB (for data transfer only)
Alarmsignal tone and / or LED signal light in case of exceeding of the adjustable upper and lower alarm limit
Switch-off: Off, 30 seconds, 1 minute, 5 minutes
Menu languages: English, German, French, Spanish, Italian, Portuguese, Chinese, Japanese
Operating conditions: 0 ... 50 °C, 20 ... 90 % r.h., non-condensing
Storage conditions: -10 ... +60 °C, 20 ... 90 % r.h., non-condensing
Dimensions: 35 x 64 x 137 mm
Weight: 175 g
- Delivery Scope:

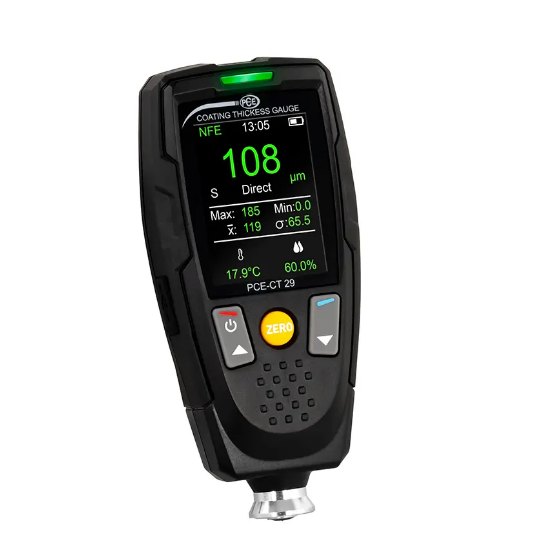

1 x Surface Tester PCE-CT 29
1 x set of standard foils
1 x carrying case,
1 x calibration plates (Fe and NFe)
1 x mass data storage
2 x 1.5 V AA battery,
1 x instruction manual
1 x ISO Calibration Certificate
