Measuring range / Resolution / Accuracy
DC voltage: 600.0 mV DC / 0.1 mV DC / ±(0.5 % + 8 digits)
1000 V DC / 1 V / ±(1.5 % + 5 digits)
Input impedance: >10 MΩ
Overvoltage protection: 1000 V AC/DC
AC voltage: 6.000 V AC / 0.001 V AC / ±(1.5 % + 5 digits)
1000 V AC / 1 V AC / ±(1.5 % + 5 digits)
Peak value (PEAK) accuracy: ±10 %
Peak value (PEAK) response time: 1 ms
Input impedance: >10 MΩ
Overvoltage protection: 1000 V AC/DC
Flexible clamp meter (50 ... 400 Hz)
Measuring range: 3000 A AC
Resolution: 1 A AC
Overload protection3000 A AC/DC
Pulse range: 40 Hz ... 10 kHz
Capacity
Measuring range: 100.0 mF
Resolution: 0.1 mF
Accuracy: ±(5.0 % + 20 digits)
Maximum working height: 2000 m / 7000 ft
Power supply: 3 x 1.5 V AAA batteries
Auto power off: Switched off, 15, 30, 45, 60 minutes
Dimensions: 250 x 80 x 40 mm / 9.8 x 3.1 x 1.5"
Weight: 365 g / 12.8 oz
Delivery

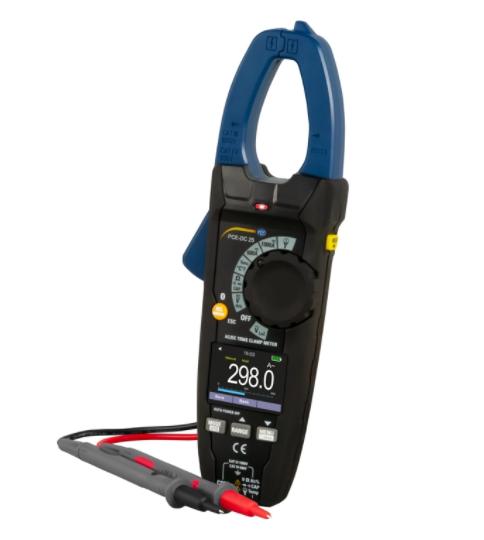

1 x Clamp Meter PCE-DC 25
1 x Pair of test leads
1 x Type K thermocouple
1 x Thermocouple adapter
3 x 1.5 V AAA batteries
1 x Transport bag
1 x Instruction manual
