- Force:
Measuring range: 0 ... 500 N
Resolution: 0.1 N
Accuracy: ± 0.05 % F.S.
- General technical data:
Units: kPa, kg, g, ft, N, lb, t, kN, Pa, Nm, Ncm
Display type: LCD with illumination
Display size: 2.8 inch
Adjustable measurement rate: 1 ... 7200 Hz
Memory medium: Internal memory
Storage capacity: 32 GB
Memory interval of: 1 Hz
Memory interval up to: 7200 Hz
Operating time: 13 h
Automatic switch-off adjustable: 1 ... 15 min.
Automatic switch-off can be deactivated: Yes
Alarm: Optical, acoustic
Alarm modes:Inside, Outside, Crack, Switch off
Menu language: German, English, French, Italian, Spanish, Dutch, Portuguese, Danish, Turkish, Polish, Russian, Chinese, Japanese
Protection class (device): IP52
Power supply: USB 5 V DC, 500 mA
Weight: 255 g
Dimensions (L x W x H): 165 x 85 x 32 mm
Operating conditions:-20 ... 65 °C , 10 ... 95 % r.H
Storage conditions: -20 ... 65 °C , 10 ... 95 % r.H
- Delivery scope:

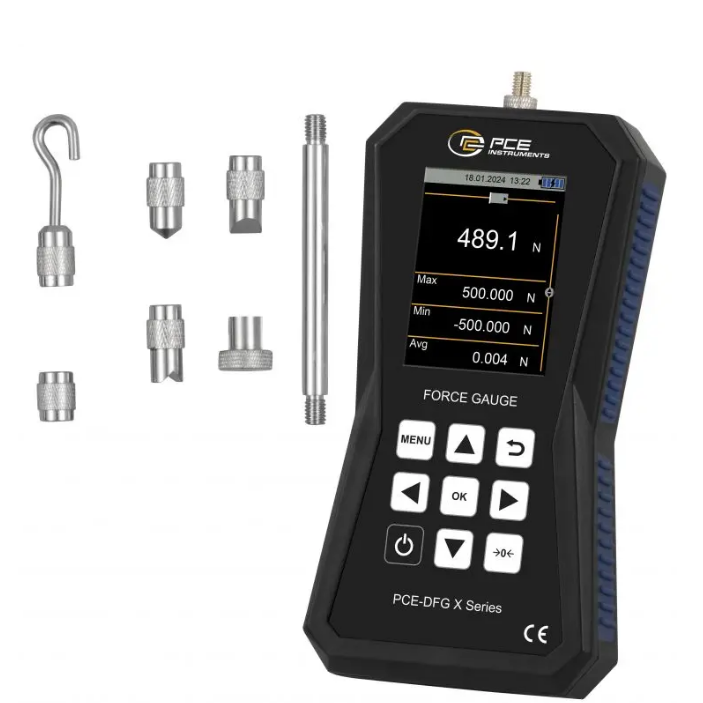

1 x PCE-DFG 500 X force gauge
1 x adapter set
1 x case
1 x USB-C cable
1 x PC software
1 x operating instructions
