Resolution |
Earth / ground insulation |
0,01 Ω / 0,1 Ω / 1 Ω |
|
Accuracy |
Earth / ground insulation |
±(2 % + 10 digits) / ±(2 % + 3 digits) / |
|
Measuring quota |
2,5 / seconds |
|
|
Display |
Backlight LCD display |
|
|
Power |
6 x 1,5 V AA batteries |
|
|
Operating conditions |
0 ... 40 ºC / <80 span="" class="SpellE">H.r. |
|
|
Dimensions |
200 x 92 x 50 mm |
|
|
Weight |
700 g |
|
|
Standards |
IEC10101, CAT III 1000 V |
|
Delivery Contents
1 x earthing tester PCE-ERT 10
1 x set of test leads (approx. 15m)
4 x ground spikes
6 x batteries
1 x carrying case
1 x instruction manual
|
Measurement of earth resistance up to 2000Ω / earth voltage / CAT III 1000 V / zero reset / large LCD display / picks are included in the delivery |
||
|

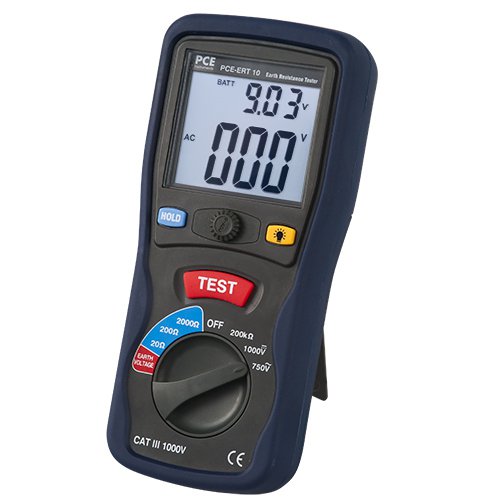

The PCE-ERT 10 series Earth Resistance Tester is a handheld instrument used to determine quickly and easily earth and ground resistance. Earth resistance and insulation are determined with the PCE-ERT 10 series Earth Resistance Tester through 3 conductors up to 2000 Ω. By means of the rotary switch a zero setting can be performed before every measurement to optimize accuracy. The PCE-ERT 10 Earth Resistance Tester allows to measure standard resistance up to 200 kΩ, to measure earth voltage as well as to measure alternating and direct voltage. Its large LCD display with backlight indicates both the current measurement value and the battery voltage to check the battery. The delivery includes two testing cables and pickets. The carrying case can be used to storage the accessories. |
||
|
- 3 conductors measuring method - Earth / ground resistance is determined in three - Measuring earth voltage up to 200 V - Battery voltage is shown in the large LCD - Possibility to zero setting. - Measuring alternating and direct voltage - All the accessories are stored in the carrying View / print user’s manual of the |
|
|
|
Technical Specifications |
||
|
Measurement ranges |
Earth / ground insulation |
20 Ω / 200 Ω / 2000 Ω |
|
Resolution |
Earth / ground insulation |
0,01 Ω / 0,1 Ω / 1 Ω |
|
Accuracy |
Earth / ground insulation |
±(2 % + 10 digits) / ±(2 % + 3 digits) / |
|
Measuring quota |
2,5 / seconds |
|
|
Display |
Backlight LCD display |
|
|
Power |
6 x 1,5 V AA batteries |
|
|
Operating conditions |
0 ... 40 ºC / <80 span="" class="SpellE">H.r. |
|
|
Dimensions |
200 x 92 x 50 mm |
|
|
Weight |
700 g |
|
|
Standards |
IEC10101, CAT III 1000 V |
|
|
Accesories of the Earth Resistance Tester |
||
|
|
|
|
|
|
|
|
