- Temperature NTC:
Measurement Range: -10°C ... +200°C
Resolution: 0.1°C
Accuracy: ±(1°C + 1 Digit)
- Pressure:
Measurement Range: -1 bar ... +60 bar
Resolution: 0.01 bar
Accuracy: ±0.5% FS (Full Scale)
- General Technical Data:
Units: MPa, kPa, psi, bar, °F, °C
Connection Type: 3 x 7/16" – UNF
Display Type: LCD
Automatic Shutdown: 30 min.
Measuring Medium: Refrigerant (see manual)
Battery Type: AA Battery (1.5V)
Menu Language: English
Protection Class: IP42
Weight: 768 g
Device Weight with Accessories: 2185 g
Device Weight with Accessories and Packaging: 2271 g
Dimensions: 204 x 116 x 65 mm (L x W x H)
Dimensions Including Packaging: 345 x 275 x 105 mm (L x W x H)
Additional Dimensions:
Refrigerant Hose Length: 0.8 m
Temperature Sensor Length: 0.8 m
Operating Conditions: 0°C ... +45°C, +10% ... 95% r.F. (Relative Humidity)
Storage Conditions: -20°C ... +60°C, +10% ... 95% r.F. (Relative Humidity)
- Delivery Scope:

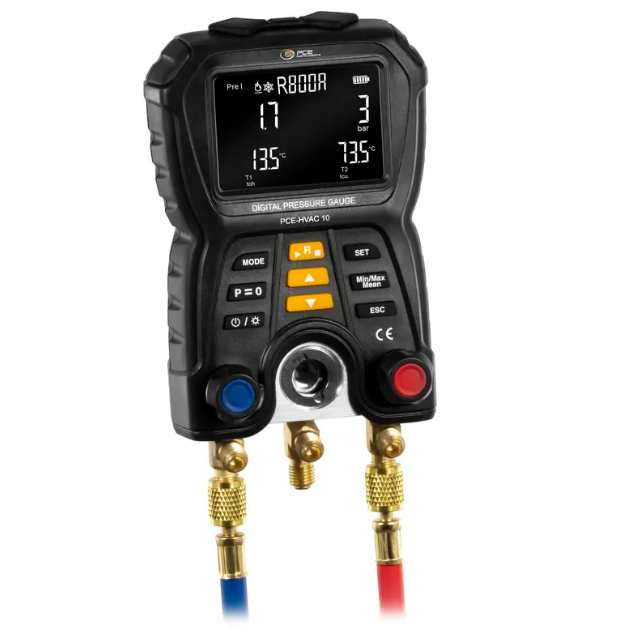

1 x Manometer PCE-HVAC 10
3 x Refrigerant Hoses (Red, Blue, Yellow)
2 x Clamp-On NTC Temperature Sensors
4 x 1.5V AA Batteries
1 x Carrying Case
1 x User Manual
