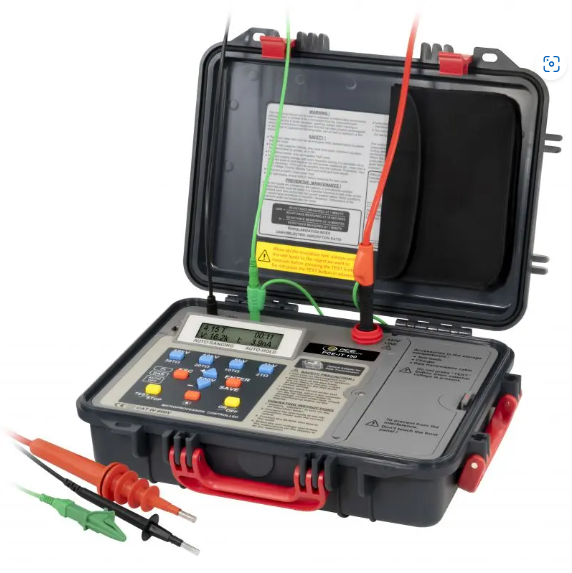

PCE IT 150 Insulation Tester (100~240 V | 50/60Hz)

Measurement functions: HOLD, PI, DAR

Display type: LCD

Memory medium: Internal memory

Memory capacity: 200 measurements

Interface: RS232

Automatic switch-off: 5 min

Automatic switch-off can be deactivated: no

Test voltage: 500 V~15 kV

Safety standard: CAT IV 600 V

Menu language: English

Power supply: 100~240 V | 50/60 Hz

Plug type: Euro plug device

Weight: 6362 g

Dimensions (Lx WxH): 325 x 430 x 132 mm

Operating conditions: 0~40 °C , 0~80 % r.H

Storage conditions: 0~40 °C , 0~80 % r.H

Capacity: 5200 mAh

Delivery scope:

1 x Insulation Tester PCE-IT 150

1 x approx. 2 m HV measuring lead

2 x approx. 1 m measuring leads

1 x data transmission cable

1 x PC software on USB stick

1 x power supply unit 24 VDC / 0.625 A

1 x operating instructions

1 x factory calibration certificate
