Terminal voltage: 125V (0 ... 10 %) ~ 1000 V (0 ... 10 %)
Measuring range: 0.125 ... 1000 MΩ
Low Ohm
Measuring range: 2~ 2,000 Ω
Grinding resistance
L-PE (Hi-Amp): Load current 4.0 A
Measuring range: 0.23 ~ 999 Ω
RCD Test
RCD (In): 10-mA, 30-mA, 100-mA, 300-mA, 650-mA, 1 A
Factors: x 1/2, x1, x2, x5
Voltage range: 194 ... 260V AC (50/60 Hz)
RCD Types: Type A, Type B
Voltage measurement
Measuring range: 80...500 V AC/DC
Frequency measurement: 45...65 Hz
Grounding measurement
Measuring range: 0.00...2000 Ω
General specifications
Power supply: 8 x 1.2 ... 1.5V AA batteries
Protection class: IP 65
Display: 3.5" TFT (320 x 240 Pixel)
Operating environment
0 ... 45°C
0 ... 95% rH, non condensing
Measurements: 24.2 x 10.5 x 14.5 cm
Weight: 1.56 kg / 3.4 lbs
Delivery

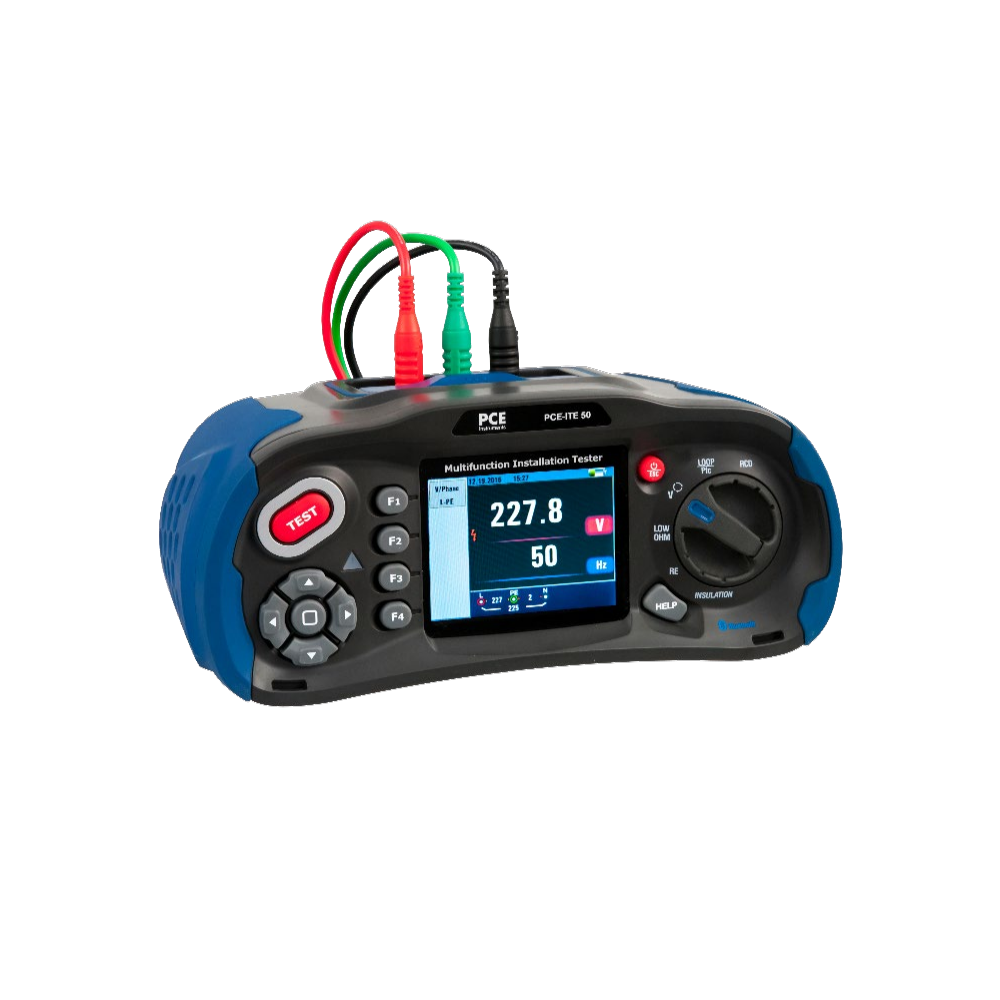

1 x Insulation Tester PCE-ITE 50
1 x User manual
