Optical zoom: 8.1 ... 32.4x
Optical lens: 1 ... 4x
Barlow: 0.3 times
Digital zoom: 1 ... 10x
Max. object height: 4 cm
Fixed working distance: 90.5 mm
Image sensor: 1/3", 3MP
White balance: Automatically or by pressing a button
Display resolution: 1024 x 600 pixels
Frame rate: 30 fps
Pixel size: 2.75 x 2.75 μm
Interface: USB 2.0
Power supply power supply:
Primary: 100 ... 240V
Secondary: 12V, 1A
Illumination reflected light: Ring with 21 x 2- mA LEDs, 5 levels adjustable
Illumination transmitted light: 7 x 20-mA LEDs, 5 levels adjustable
Environmental conditions: -5 ... 40°C / 23 ... 104°F, 45 ... 85% rh
Dimensions: 300 x 225 x 270 mm / 11.8 x 8.9 x 10.6 in
Weight: About 2.3 kg / 5.1 lbs
Delivery Scope:

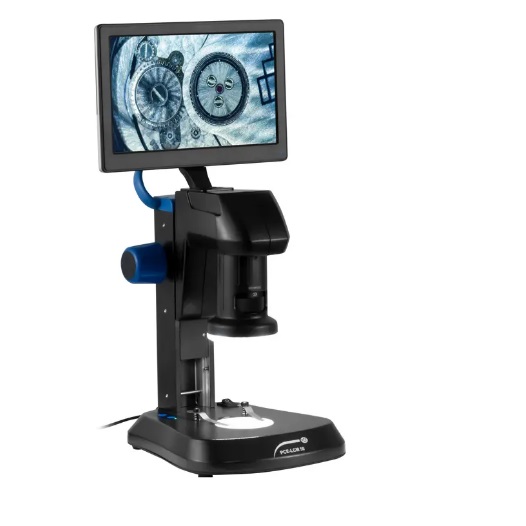

1 x Digital microscope PCE-LCM 50
1 x USB mouse
1 x Micro SD card
1 x Protective cover
1 x Contrast disc black / white
1 x Translucent lens
1 x Power supply
1 x Protective film
1 x User manual
