- General technical data:
Measurement functions: MAX, ALARM
Units: bar, psi, MPa, l/min, m³/h, cfm
Frequency: 38 ... 42 kHz
Display type: LC Touch Display
Display size: 3.5 inch
Display refresh rate: 1 x per second
Measurement rate: 1 Hz
Memory medium: Internal memory
Storage capacity: 1 GB
Microphone type: Electret condenser
Other functions: Leakage rating
Interface: USB-C, 3.5 mm jack, Bluetooth
Sensor: Ultrasonic
Measuring medium: Non-explosive gases, air, refrigerants
Camera resolution: 5 megapixels
Operating time: 6 h
Automatic switch-off adjustable: 0 ... 60 min.
Laser: 640 ... 660 nm wavelength, < 1.0 mW output power
Housing: ABS
Menu language: German, English, French, Spanish, Portuguese, Turkish, Polish, Chinese, Japanese, Korean, Czech
Protection class (device): IP30
Power supply: 5V DC 3 A (via USB-C)
Weight: 432 g / 0.95 lb
Other weights:
Sound horn: 38.5 g / 0.08 lb
Acoustic horn + tip: 20.5 g / 0.04 lb
Dimensions (L x W x H): 230 x 100 x 62 mm
Other dimensions:
Sound horn : L 130 Ø 60 mm
Alignment tube + tip : L 190 Ø 14 mm, opening Ø 1.5 mm
Operating conditions:0 ... 40 °C , 0 ... 80 % r.H
Storage conditions: -10 ... 50 °C , 0 ... 90 % r.H
- Delivery scope:

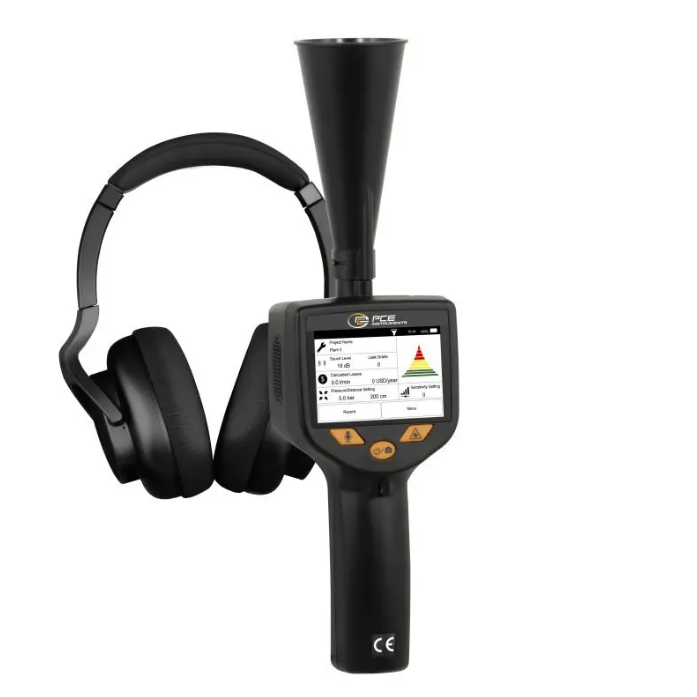

1x PCE-LDC 20 gas leak detector
1x calibration certificate
1x software
1x USB-C cable
1x wireless headphones
1x micro USB cable
1x 5 V power supply unit with adapters
1x operating instructions
