Measuring principle: Ultrasonic
Measuring medium: Air, coolant, non-explosive gases
Operating frequency: 40 kHz ± 2 kHz
Connections:
3.5 mm jack plug for sensor
3.5 mm jack plug for headphones and charger
Display: LC display
Power supply: NiMH battery
Operating time:
approx. 6 h without laser pointer
approx. 4 h with laser pointer
Charging time: about 1.5 h
Operating temperature:
Normal operation: 0 ... 40 ° C
Charging mode: 10 ... 40 ° C
Laser: 2nd grade; <1mW; 650 nm
Dimensions: 7.54 x 3.44 x 2.09 in; 191.5 x 87.5 x 53 mm
Weight : approx. 250 g
Measurement options pressure vs. Diameter / range
Print Diameter Range
0.5 bar 0.1 mm 6.6 ft, 2 m
0.2 mm 6.6 ft, 2 m
0.5 mm 32.8 ft, 10 m
Print Diameter Range
5 bar 0.1 mm 26.2 ft, 8 m
0.2 mm 45.9 ft, 14 m
0.5 mm 59.1 ft, 18 m
Delivery Scope:

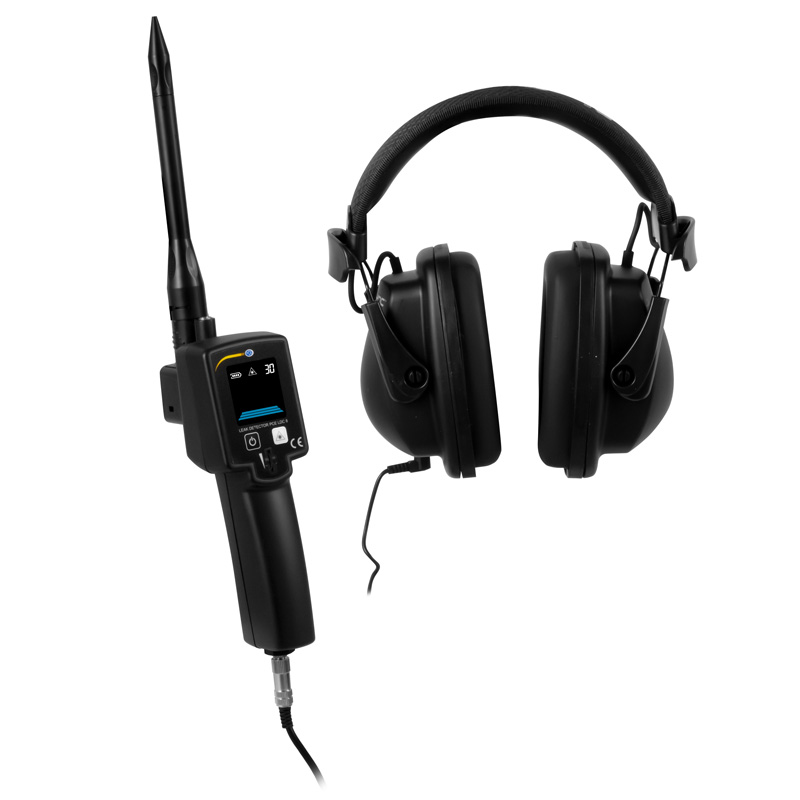

1 x Leak Detector PCE-LDC 8
1 x sensor unit
1 x headphones
1 x focus tube incl. focus tip
1 x sensor extension cable
1 x charger
1 x carrying case
1 x instruction manual
