- Frequency:
Measuring range: 60 FPM ... 9999.99 FPM
Resolution: 0.01 FPM
Accuracy: +/- 0.001% of the setting or +/-1 LSD
- Frequency:
Measuring range: 10000 FPM ... 300000 FPM
Resolution: 0.1 FPM
Accuracy: +/- 0.001% of the setting or +/-1 LSD
- Frequency:
Measuring range: 1 Hz ... 5000 Hz
Resolution: 0.01 Hz
Accuracy: +/- 0.001% of the setting or +/-1 LSD
- General technical data :
Display type: TFT colour display
Display size: 2.8 inch
Operating time: 4.5 h
Operating time additional information: at flash frequency 100 Hz, 1 %, display brightness 70 %
Automatic switch-off adjustable: 2 ... 10 min.
Automatic switch-off can be deactivated: Yes
Light intensity:
635 μW/cm2 @ 20 cm @ 1000 Hz, 1 %
317 μW/cm2 @ 30 cm @ 1000 Hz, 1 %
115 μW/cm2 @ 50 cm @ 1000 Hz, 1 %
Light colour: UV light (380 ... 390 nm)
Phase shift: -360 ... 360 °
Pulse width: 0.01 ... 1 % of pulse duration
Resolution: 0.01 %
0.01 º ... 3.60 º from 360 º
Resolution: 0.01 º
Menu language: German, English, Spanish, French, Italian, Dutch, Turkish, Polish, Russian, Chinese
Protection class (device): IP52
Power supply: 5V DC, 2A
Weight: 284 g
Dimensions (L x W x H): 165 x 90 x 35 mm
Operating conditions: -20 ... 60 °C , 35 ... 85 % r.H
Storage conditions: -20 ... 60 °C , 35 ... 85 % r.H
- Delivery scope:

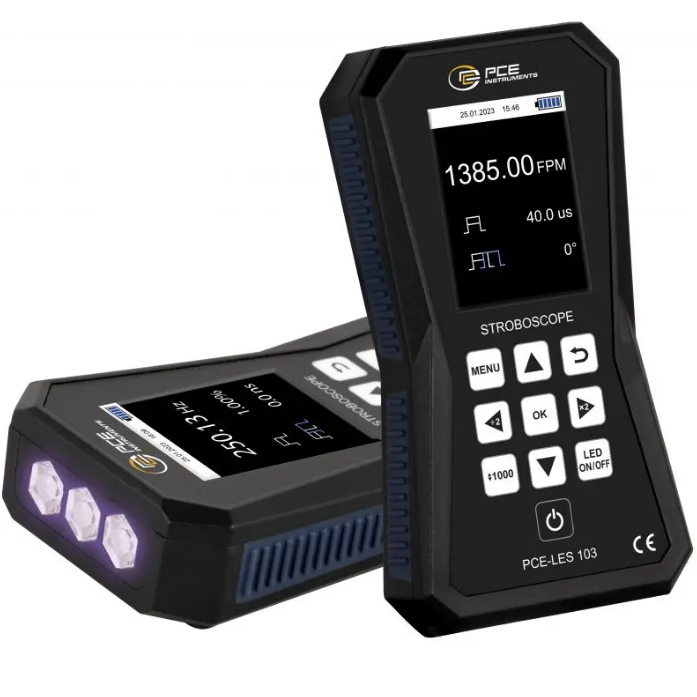

1 x tachometer PCE-LES 103UV-385
1 x USB-C cable
1 x Quick Start Guide
1 x Service bag
