Input voltage: 115/230 V, 50/60 Hz AC voltage (switchable) ± 10%
Fuse: 115 V 4 AT / 230 V 2 AT
Output voltage (control output): 0 ... 30 V
Output current (control output): 0 ... 5 A DC
Output voltage (output 1): 12 V
Output current (output 1): 500 mA
Output voltage (output 2): 5 V
Output current (output 2): 500 mA
Stability
continuously variable voltage output: 1 x 10 ^ 4 + 3 mV
continuously variable current output:2 x 10 ^ 3 + 3 mA
Fixed voltage outputs: ≤ 1%
Load stability
continuously variable voltage output:
≤ 1 x 10 ^ 4 + 2 mV (I ≤ 3 A)
≤ 1 x 10 ^ 4 + 5 mV (I> 3 A)
continuously variable current output:
≤ 2 x 10 ^ 3 + 3 mA (I ≤ 3 A)
≤ 2 x 10 ^ 3 + 5 mA (I> 3 A)
Fixed voltage outputs: ≤ 1%
Ripple / Noisecontinuously variable voltage output:
≤ 0.5 mVeff (I ≤ 3 A)
≤ 1 mVeff (I> 3 A)
continuously variable current output:
<3 mAeff (I> 3 A)
Fixed voltage outputs: ≤ 10 mVeff
Overload protection: current limiting circuit
Voltage display: LED display ± 0.2% + 2 digits
Power indicator: LED display ± 1.0% + 2 digits
Dimensions (WxHxD): 170 x 160 x 250 mm
Weight: approx.7 kg
Delivery Scope:

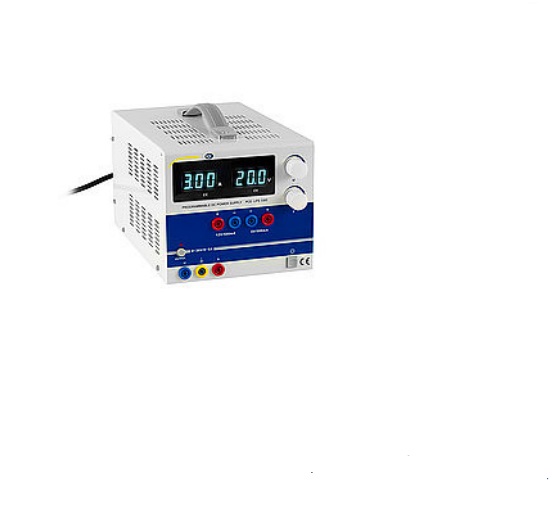

1 x programmable power supply PCE-LPS 3305
1 x USB cable
1 x software
1 x 2 A fuse
1 x 4 A fuse
1 x instruction manual
