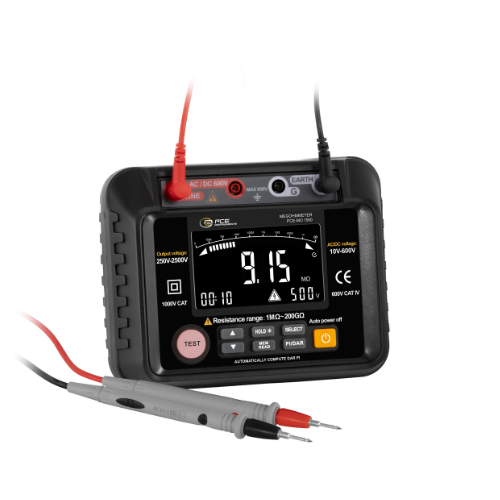

PCE MO 1500 Megohmmeter (2 M Ω ... 20 GΩ)

Specification

Direct voltage DC

Measurement range up to: 10 ... 600 V

Resolution: 1 V

Accuracy: ±(0.8 % of Rd +5 digits)

AC voltage

Measurement range up to: 10 ... 600 V

Resolution: 1 V

Accuracy: ±(1 % of Rd. +5 digits)

Overload: 2000 V AC max. 1 minute

Insulation resistance

Test voltage DC: 250 V

Measurement range up to: 2 M Ω ... 20 GΩ

Resolution: 0.01 M Ω

Accuracy: ±(5 % o Rd +10 digits)

Insulation resistance

Test voltage DC: 500 V, 1000 V

Measurement range up to: 1 M Ω ... 20 GΩ

Resolution: 0.01 M Ω

Accuracy: ±(5 % o Rd +10 digits)

Insulation resistance

Test voltage DC: 2000 V

Measurement range up to: 3 M Ω ... 200 GΩ

Resolution: 0.01 M Ω

Accuracy: ±(5 % o Rd +10 digits)

Insulation resistance

Test voltage DC: 2500 V

Measurement range up to: 5 M Ω ... 200 GΩ

Resolution: 0.01 M Ω

Accuracy: ±(5 % o Rd +10 digits)

General technical data

Measuring functions: HOLD, PI, DAR

Display type: LCD

Display size: 3.7 Inch

Storage medium: Internal memory

Storage capacity: 100 Data records

Standard(s): EN 61010-1

Automatic power-off: 25 min

Safety standard: CAT III 1000V, CAT IV 600 V

Menu language: English

Protection class (device): IP20

Weight: 651 g

Operating conditions: 0 ... 35 °C , 0 ... 75 % RH

Storage conditions: 0 ... 35 °C , 0 ... 75 % RH

(Rechargeable) battery: 8 x 1.5 V AA battery , Alkali-manganese

Capacity: 2500 mAh

Dimensions ( L x W x H ): 140 x 180 x 70 mm

Delivery Scope

1 x Insulation Tester / Insulation Meter PCE-MO 1500

2 x crocodile clip

3 x test lead approx. 1 m

8 x 1.5 V AA batteries

1 x user manual

1 x carrying case
