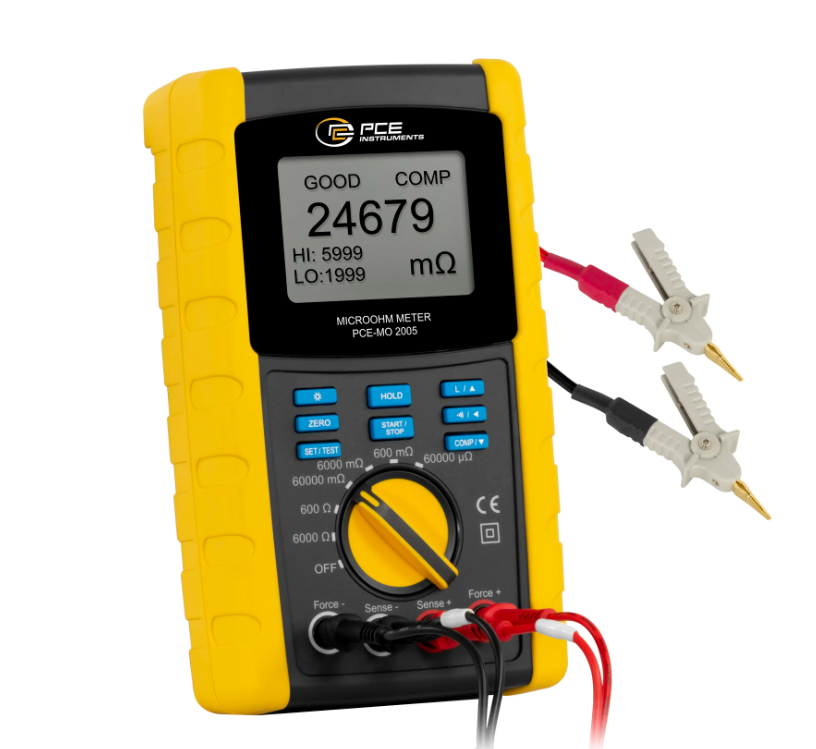

PCE MO 2005 Milliohmmeter (0 - 6000 Ω)

Resistance

Measurement range up to: 0 ... 60000 µΩ

Resolution: 1 µΩ

Accuracy: ±0.25 % of Rd +25 digits (@ 23 ±5 °C)

Resistance

Measurement range up to: 60000 µΩ ... 600 mΩ

Resolution: 10 µΩ

Accuracy: ±0.25 % of Rd +25 digits (@ 23 ±5 °C)

Resistance

Measurement range up to: 600 ... 6000 mΩ

Resolution: 100 µΩ

Accuracy: ±0.25 % of Rd +25 digits (@ 23 ±5 °C)

Resistance

Measurement range up to: 6000 ... 60000 mΩ

Resolution: 1000 µΩ

Accuracy: ±0.25 % of Rd +25 digits (@ 23 ±5 °C)

Resistance

Measurement range up to: 60000 mΩ ... 600 Ω

Resolution: 10 mΩ

Accuracy: ±0.25 % of Rd +25 digits (@ 23 ±5 °C)

Resistance

Measurement range up to: 600 ... 6000 Ω

Resolution: 100 mΩ

Accuracy: ±0.75 % of Rd +3 digits (@ 23 ±5 °C)

General technical data

Measuring functions: HOLD

Display type: LCD with backlight

Display size: 3.3 Inch

Interface: RS232

Standard(s): EN 61010-1, EN 61325-1

Measuring method: 4-wire method for mΩ measurement

Test current: 10 A: 60000 µΩ

1 A: 600 mΩ

100 mA: 6000 mΩ

10 mA: 60000 mΩ

1 mA: 600 Ω

100 µA: 6000 Ω

Fuse(s): 10 A / 250 V

Menu language: English, English (GB)

Protection class (device): IP30

Power supply: 100 ... 240 V AC | 47/63 Hz

Connector type: Schuko plug

(Rechargeable) battery: 8 x 1.5 V AA battery , Zinc carbon

Capacity: 1200 mAh

Operating conditions: 0 ... 50 °C , 0 ... 80 % RH

Storage conditions: 0 ... 50 °C , 0 ... 80 % RH

Dimensions ( L x W x H ): 220 x 125 x 64 mm

Weight: 777 g

Delivery Scope

1 x Milliohmmeter PCE-MO 2005

2 x 80 cm test leads with Kelvin clamps

8 x AA 1.5 V batteries

1 x mains adaptor 9 V, 3 A

1 x IEC cable

1 x carrying case

1 x user manual
