Input: 1 A, 5 A, 100 V, 250 V, 400 V
Input resistance: 2 MΩ
Accuracy (20 - 500 Hz): ± (0.5 % full scale + 1 dgt.)
Time for averaging: 0.5 ... 20 s
Outputs: 2x open collector, 30 V, 20 mA
Display: 5-digit 7-segment LED display, height: 14 mm / 0.55" tricolor
Display range: -19999 ... 99999
Ambient temperaturein operation: -10 °C ... 55 °C / 14 °F ... 131 °F
storage: -25 °C ... +85 °C / -13 °F ... 185 °F
Max. humidity: < 95 % non-condensing
Dimensions: 96 mm x 48 mm x 64 mm / 3.7 x 1.8 x 2.5"
Control panel cut-out: 92 mm x 45 mm / 3.6 x 1.7" (according to DIN)
Supply voltage: 85 ... 253 V AC/DC, 20 ... 40 V AC/DC
Power consumption: < 6 VA
Degree of protection: front: IP 65
Weight: < 250 g / 8.8 oz
Mounting: mounting clips with clamping screws, connection via terminal strip
Housing: robust plastic housing
The voltage display is electrically connected via the screw terminals on the back. An overview of the connections is located on the housing, enabling quick and safe on-site installation. The voltage display programming interface (PD14) is also located here. It is designed as a western socket. The programming adapter converts the data stream to a USB interface.
Delivery Scope:

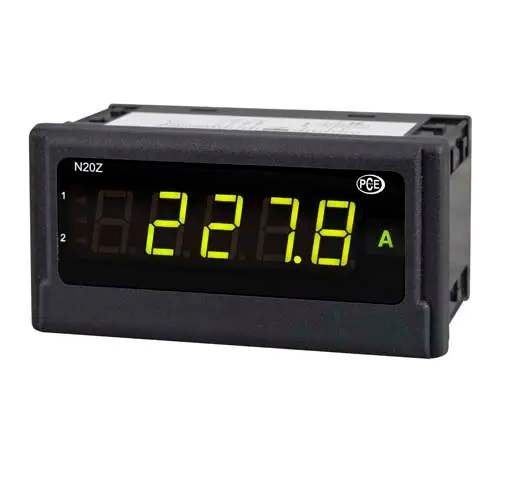

1 x Power Indicator PCE-N20Z, fastening material, seal, operating instructions
