Eyepieces: WF 10x wide field eyepieces
Head: Trinocular
360° rotatable
30° angled view
Right diopter adjustment
Interpupillary distance adjustable: 55 ... 75 mm
Lenses: 4
Magnification: 4x, 10x, 40x, 100x
Numerical aperture: 0.1 mm, 0.25 mm, 0.65 mm, 1.25 mm
Focal length: 31.04 mm, 17.13 mm, 4.65 mm, 2.906 mm
Working distance: 37.50 mm, 7.316 mm, 0.632 mm, 0198 mm
Coverslip: 0.17 mm
Total magnification eyepiece + lens: 40, 100, 400, 1000
Tube length: 160 mm
Conjugate distance: 195 mm
Cross table: 125 x 125 mm
Shift: 40 x 60 mm
Hub: 14 mm
Condenser
Cover: yes
Adjustment: yes
Filter: yellow, green, blue
Lighting: 3.5 V 1 W LED
Dimmable: yes
-Technical Data Camera / Display:
Camera
Size: 13"
Horizontal resolution: 700 lines
Resolution: 976 x 582 pixels
LCD Display
Resolution: 800 x 600 pixels
Colours: 16777216
Video output highest resolution: 1024 x 768 at 75 Hz
Video Format: PAL, NTSC4.43, NTSC3.58, SECAM
-General Technical Data:
Power supply: 230 VAC 50 Hz
Environmental conditions: 0 ... 40 °C / 85 % RH. max.
Dimensions: 550 x 320 x 210 mm
Weight: 5100 g
Delivery Scope:

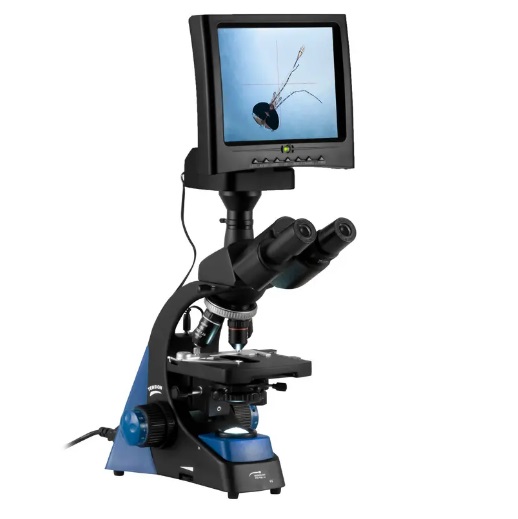

1 x Microscope PCE-PBM 100
1 x Connection cable
1 x Screen connection cable
3 x Colour filter
1 x LC display with camera
1 x Cinch video cable
1 x Video Cinch-USB converter
1 x Video software
1 x USB extension
1 x Cover hood
1 x User manual
