Measuring range: 0 ... 200 N
Resolution: 0.05 N
Accuracy: ±0.3 % of the measuring range
Measurement units: N, kgF, lbF
Display: 1.8" graphic display
Alarm modes: Below, Inside, Outside
Sampling rate: 500 Hz
Memory: 100 measurements
Power supply: lithium battery 3.7 V / 1500 mAh
Battery life: up to 36 hours
Power supply / USB charging adapter: 5 V / 1 A
Outputs: interface: USB B
Switching output / alarm modes: MD6 with 2.85 V if active
Protection class: IP 54
Operating and storage conditions: 5 ... 45 °C; 35 ... 65 % r.H. not condensing
Force application: M6 x 10 mm thread
Dimensions: 189 x 707 x 34 mm
Weight: 450 g
Delivery Scope:

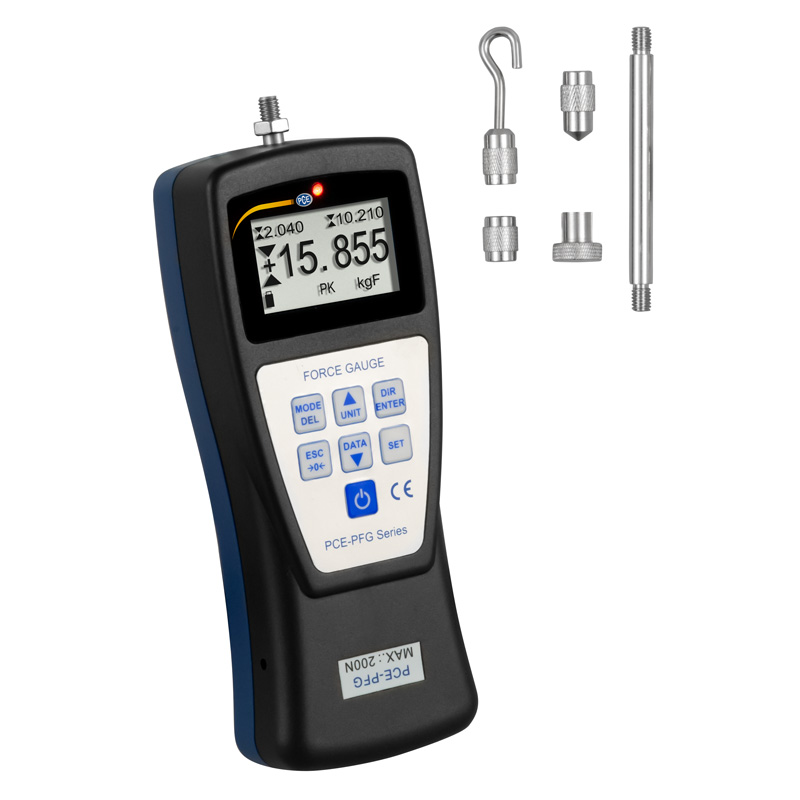

1 x Force Gauge PCE-PFG 200
1 x flat head adapter Ø13 mm
1 x pointed head adapter
1 x hook adapter
1 x extension rod (75 mm)
1 x USB cable
1 x USB charger
1 x instruction manual
1 x plastic carrying case
