- pH:
Measurement Range: -2 pH ... +20 pH
Resolution: 0.001 pH
Accuracy: ± 0.002 pH + 2 digits
- Electrode:
Designation: PE-03
Measurement Range: +1 pH ... +13 pH
Temperature Range: 5 ... 60 °C
Application: Aqueous non-corrosive media
Reference Electrolyte: Ag/AgCl
Shaft Material: Epoxy resin
Shaft Length: 160 mm
Shaft Diameter: 12 mm
Cable Length: 1 m
- Redox:
Measurement Range: -2000 mV ... +2000 mV
Resolution: 1 mV
Accuracy: ± 2 mV
- Temperature Sensor:
Minimum Temperature: -20 °C
Maximum Temperature:100 °C
Resolution: 0.1 °C
Accuracy: ± 0.5 °C (@ 20 °C)
- General Technical Data:
Storage Medium: Internal memory
Storage Interval from: 1 s
Storage Interval to: 12 h
Storage Capacity: 32 GB
Storage Capacity Additional Information: 100 records with a maximum of 100,000 data points per record
Interface: USB-C
Menu Language: German, English, French, Spanish, Italian, Dutch, Portuguese, Turkish, Polish, Russian, Chinese, Danish, Japanese
Protection Class (Device): IP52
Power Supply: 5 V DC, 500 mA
Weight: 252 g
Dimensions (L x W x H): 178 x 85 x 32 mm / 7 x 3,3 x 1,2 in
Operating Conditions: -20 ... 65 °C , 10 ... 95 % r.H
Storage Conditions: -20 ... 65 °C , 10 ... 95 % r.H
Languages of the Manual: German, English
- Batteries and Accumulators:
Type: Lithium polymer battery
Lithium Info: Lithium in the product (built-in or included)
Capacity: 2500 mAh
Voltage: 3.7 V
SystemSecondary: Rechargeable battery
Quantity: 11
- Delivery scope:

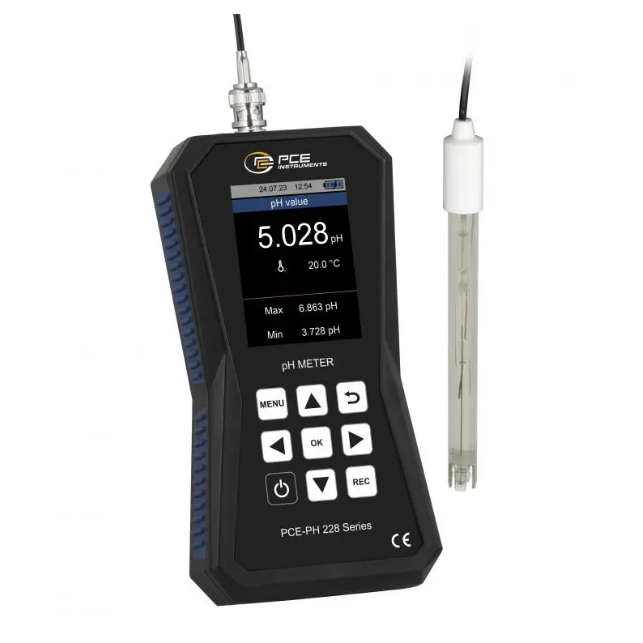

1 x pH Meter PCE-PH 228
1 x pH Electrode PE-03
1 x Temperature Sensor
1 x Service Pouch
1 x USB-C Cable
1 x Quick Start Guide
