PCE-PH20M
Measuring range: 0.00 ... 14.00 pH
Resolution: 0.01 pH
Accuracy:
± 0.07 pH (in the range 5 ... 9 pH)
± 0.1 pH (in the range 4 ... 4.9 and 9.1 ... 10 pH)
± 0.2 pH (in the range 1. .. 3.9 and 10 ... 13 pH)
Calibration: Automatically, at pH 4, 7 or 10 using calibration Solutions
Electrode: Food pH electrode CPC-OSH-12-01 BNC connector
Power supply: 4 x 1.5V AAA batteries
Environmental conditions: 0 ... 60°C / 32 ... 140°F, < 80% rh
Dimensions: 180 x 40 mm / 7.1 x 1.6 in
Weight: 220 g / < 1 lb
PCE-IR 80
Measurement type: infrared
Measuring range: -35 ... 330°C / -31 ... 626°F
Resolution: 0.1°C / 0.18°F
Accuracy: -35 ... 0°C / -31 ... 32°F : ± 4°C / 7.2°F, > 0°C / 32°F: ± 2% of mv ± 2°C / 3.6°F
Measurement type: penetration sensor
Measuring range: -20 ... 260°C / -4 ... 500°F
Resolution: 0.1°C / 0.18°F
Accuracy: ± 1% of meas. Mw. ± 1.5°C / 2.7°F
Measuring spot ratio: 4: 1
Emissivity: Adjustable 0.1 ... 1.0
Response time: 10 ms
Spectral range: 8 ... 14 µm
Power supply: 3.0V CR2032 battery
Operating conditions: 0 ... 50°C / 32 ... 122°F max. 80% RH
Weight: Approx. 100 g / < 1 lb
Dimensions: 151 x 41 x 20 mm / 5.9 x 1.6 x 0.8 in

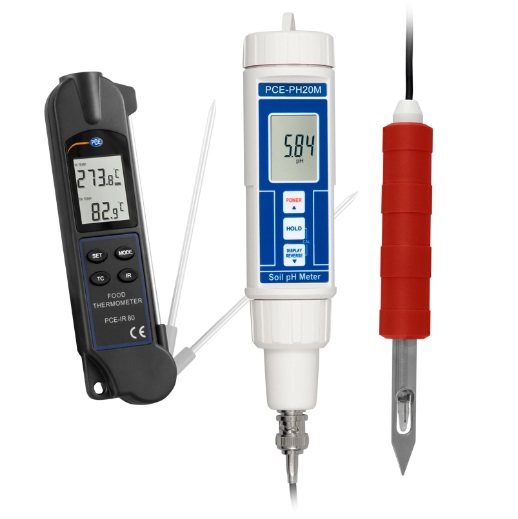

Delivery Scope:
1 x PCE-PH20M-IR 80-KIT
1 x Infrared thermometer PCE-IR 80
1 x pH electrode CPC-OSH-12-01 (for food)
4 x Batteries
1 x Battery 3.0V CR2032
1 x Calibration kit with solutions pH4 + 7 (75 ml bottle each)
1 x Operating manual
