-DC Voltage:
Measuring range: 0 … 10 V
Resolution: 0.001 V
Accuracy: ±1 % ±(1 % of Vopen ±0.1 V)
Measuring range: 10 … 60 V
Resolution: 0.1 V
Accuracy: ±1 % ±(1 % of Vopen ±0.1 V)
Vopen: open voltage measurement on a solar module
-Direct Current:
Measuring range: 0.01 … 10 A
Resolution: 1 mA
Accuracy: ±1 % ±(1 % of Ishort ±9 mA)
Measuring range: 10 … 12 A
Resolution: 10 mA
Accuracy: ±1 % ±(1 % of Ishort ±0.09 A)
Ishort: short-circuit current of a solar cell
-Further specifications:
Adjustable photovoltaic area: 0.001 … 9999 m²
Adjustable irradiance: 10 … 1000 W/m²
Display: 4.8“ LC display
Fuse: F250 V, 12 A
Data memory: 100 measurements
Storage rate: 0 … 99 minutes
Battery life: ca. 400 linear measurements from 60 … 0 V and 0 … 12 A
Power supply battery: 11.1 V, 3400 mAh lithium battery
Power supply mains adapter
Primary: 100 … 240 V AC 50/60 Hz
Secondary: 15 V DC / 3A
Degree of pollution: 2
Temperature coefficient: 0.1 % of the measuring range /°C / °F at temperatures <18 °C / 64 °F and >28 °C / 82 °F
Operating conditions: -20 … 60 °C / -4 ... 140 °F <75 % RH, non-condensing
Dimensions: 257 x 155 x 57 mm / 10.1 x 6.1 x 2.2 in
Weight: 1160 g / 2.6 lbs
Delivery Scope:

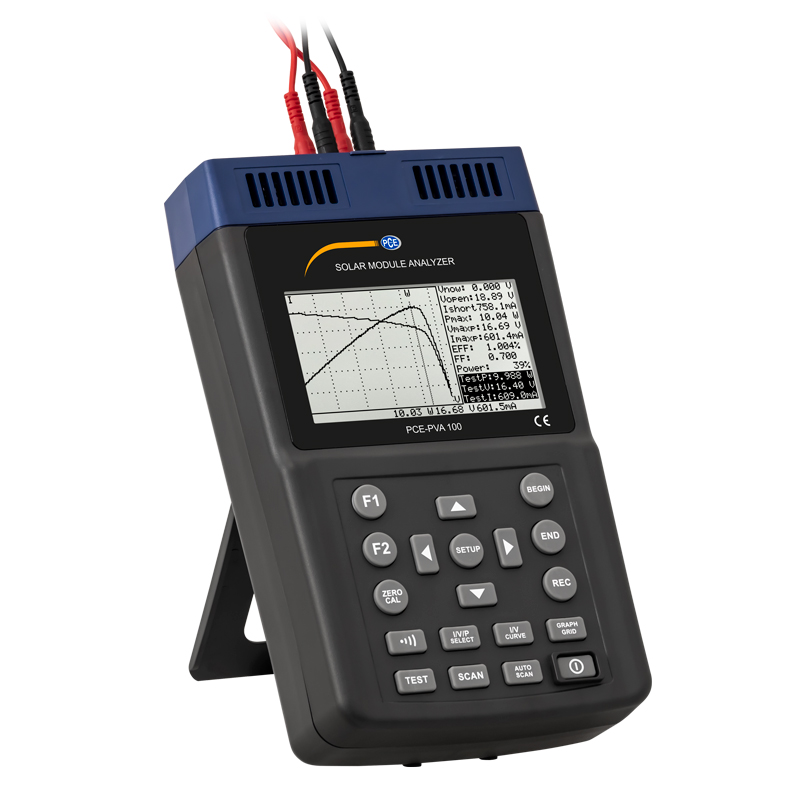

1 x Photovoltaic meter PCE-PVA 100
1 x Optical USB cable
1 x Battery
1 x Software CD
2 x Kelvin clamps
2 x Safety measuring lines (100 mm)
1 x Mains power adapter
1 x Instruction manual
