Measuring range: ± 0.03 ... ± 5 m / s (± 0.09 ... ± 16 ft / s)
Measurement accuracy: ± 1% of the measured value
Repeatability: 0.2%
Pipe diameter: 25 ... 1200 mm (1 ... 48 in)
Analog output: 0/4 ... 20 mA (maximum load 750 Ω)
Pulse output: 0 ... 9999 Hz OCT (Frequency limits are adjustable)
Relay output: 1 A at 125V AC, 2 A at 30V DC
Maximum frequency: 1 Hz
Communication interface: RS232 & RS485
Power supply: 10 ... 36V DC
Power consumption: 1 A
Display: LCD, 256 x 128 pixels, with backlight
Ambient conditions base: -40 ... 60°C / -40 ... 140°F; 0 ... 99% RH non-condensing
Ambient conditions sensor: -40 ... 80°C / -40 ... 176° F; 0 ... 99% RH non-condensing
Housing material base: PC / ABS
Protection class base : IP 65
Protection class sensor: IP 68
Cable length: 9 m / 30 ft
Dimensions: 16 x 23 x 28 cm / 6.3 x 9.1 x 11"
Weight: 3.2 kg / 7.1 lbs
Delivery Scope:

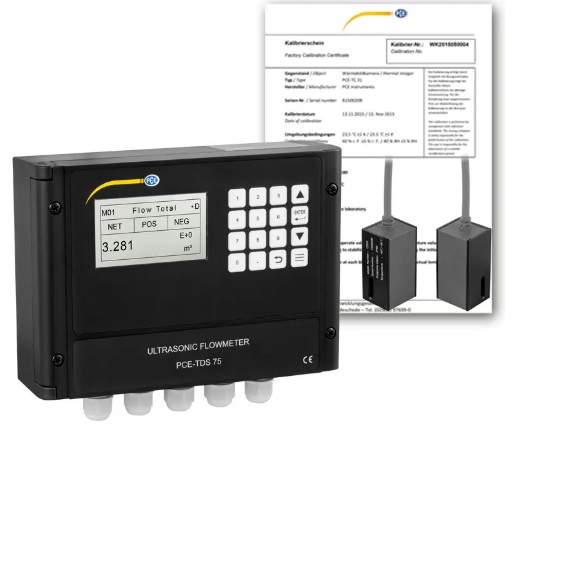

1 x Ultrasonic flow meter PCE-TDS 75
2 x Flow sensors
1 x Wall mounting set
2 x Hose clamps
1 x Instruction manual
1 x ISO Calibration Certificate
