PCE TG 75A Thickness Meter (1000~9999 m/s) | EMINKH.COM

PCE TG 75A Thickness Meter (1000~9999 m/s)

In Stock: 1 Unit

ManufacturerPCE(View more products from this manufacturer)

ModelTG 75A

P/NPCE-TG 75A

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Units: mm

Display type: TFT colour display

Display size: 2.4 inch

Storage medium: Internal memory

Memory capacity: 500 values

Automatic switch-off from...to: 2~30 min.

Automatic switch-off can be deactivated: Yes

Sonic speed adjustable: 1000~9999 m/s

Menu language: English (US), Chinese

Protection class (device): IP52

Weight: 230 g

Dimensions (LxWxH): 168 x 87 x 35 mm

Operating conditions: 0~40 °C, 0~90 % r.H

Storage conditions: 0~40 °C, 0~90 % r.H

Accumulator/battery: 3x 1.5 V AA battery, alkaline-manganese

Capacity: 3000 mAh

Delivery scope:

1 x PCE-TG 75A thickness meter

1 x PCE-TG 5M10d sensor

1 x coupling gel (TT-GEL)

1 x transport bag

3 x 1.5 V AA batteries

1 x quick start guide

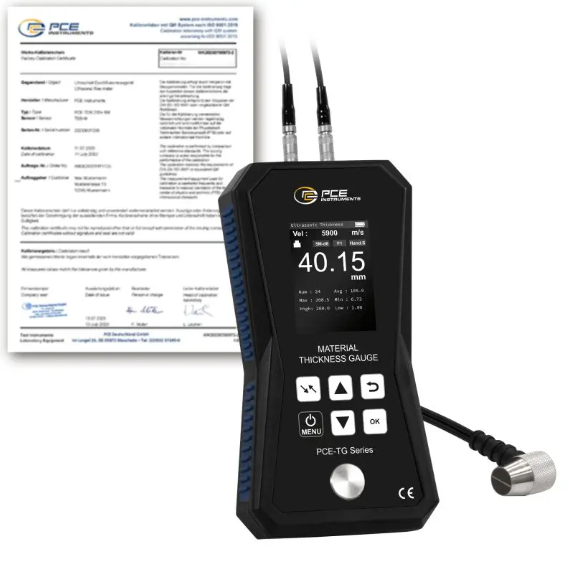

The thickness meter can measure material thicknesses up to 225 mm. To ensure that the material thickness of a wide variety of homogeneous materials can be measured, it is possible to store the corresponding sonic velocity in the thickness meter. For materials such as steel, aluminium, zinc, silver and gold, the appropriate sonic velocities are already stored in the device library. This means that the thickness meter can be used universally.

Individual maximum and minimum values can be stored with the thickness meter's limit value function. If the measured value of the test specimen is outside the limits, the thickness meter signals this visually. If required, the thickness meter can also provide acoustic signalling in addition to the visual display. The thickness meter is therefore used, for example, in quality assurance and incoming goods inspection.

The thickness meter has a data memory on which the measured values can be recorded. After a measurement process, the stored measured values can be analysed directly on the thickness meter. The stored data is displayed graphically by the thickness meter. In addition, each individual measuring point can be approached and read in the graphic of the thickness meter. To simplify the analysis of the measured values, the average, the largest and smallest measured values are displayed on the thickness meter. The thickness meter can optionally be equipped with an ISO calibration certificate.
