- Velocity m/s:
Measurement Range: 0.1 ... 5 m/s
Resolution: 0.001 m/s
Accuracy: 2%
Pipe Size: DN25
- General Technical Data:
Display Type: OLED
Analog Output: 4 ... 20mA
Data Interface: RS485
Voltage Supply: 9 ... 36 V DC
Materials: PVC, Steel, Stainless Steel, Copper, PVDF (Polyvinylidenfluorid), PFA (Perfluoralkoxy-Polymere), PTFE (Polytetrafluorethylen), PU (Polyurethane), Aluminum
Measuring Medium: Water, Seawater, Oil, User-defined (manual input of sound velocity for the medium)
Menu Language: English
Protection Class: IP54
Weight: 515 g
Device Weight with Accessories: 652 g
Device Weight with Accessories and Packaging: 892 g
Dimensions (L x W x H): 110 x 58 x 67 mm
Dimensions including Packaging (L x W x H): 210 x 153 x 104 mm
Operating Conditions: 0 ... 50 °C
Operating Condition r.H.: < 95%
Storage Conditions: 0 ... 50 °C
Storage Conditions r.H.: < 95%
- Delivery Scope:

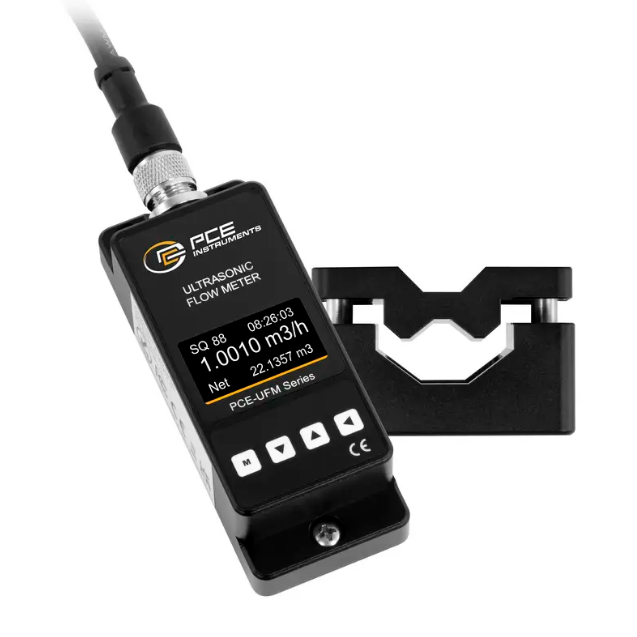

1 x Fixed Installation HVAC meter PCE-UFM 25
1 x 2m Connection Cable
4 x Coupling Pads
1 x User Manual
