Specification
Speed
Measurement range up to: 0.03 ... 5 m/s
Resolution: 0.01 m/s
Accuracy: ±2 % of Rd (0.3 ... 5 m/s)
Speed
Measurement range up to: 0.1 ... 16 ft/s
Resolution: 0.1 ft/s
Accuracy: ±2 % of Rd (1.0 ... 16 ft/s)
Volume flow
Measurement range up to: 0.2 ... 35 m³/h
Resolution: 0.01 m³/h
Accuracy: ±2 % of Rd
General technical data
Display type: LC colour display
Display size: 1.44 Inch
Display resolution: 128 x 128
Interface: Ethernet, PoE
Materials: PVC
Measured medium: Water
Repeatability: 0.2 %
Communication: HTTP, MQTT
Menu language: English, Chinese, English (GB)
Protection class (device): IP54
Power supply: PoE
Connector type: RJ45
Weight: 1252 g
Operating conditions: -10 ... 50 °C , 0 ... 99 % RH
Storage conditions: -10 ... 50 °C , 0 ... 99 % RH
Dimensions ( L x W x D ): 65 x 111 x 43 mm
Delivery Scope

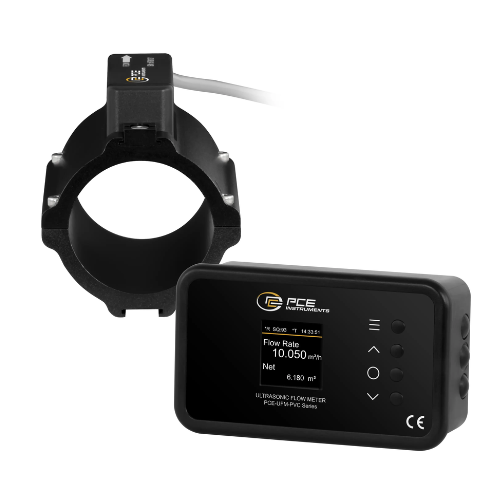

1 x Ultrasonic flow meter PCE-UFM 50PVC
1 x sensor with Ethernet cable 9 m
1 x PoE network cable 2 m
1 x ultrasonic contact gel
1 x silicone seal 1 m
4 x coupling pad
1 x Allen key
1 x user manual
Note: The Android app "dial Meter Tube" can only be downloaded from our shop, under Downloads!
